<Air Bag Module (Driver's Side) And Clock Spring>

CAUTION: Always carry out steering wheel sensor calibration after the clock spring has been installed (Refer to STEERING WHEEL SENSOR CALIBRATION ). This is necessary because the TCL/ASC-ECU should update the steering neutral point.

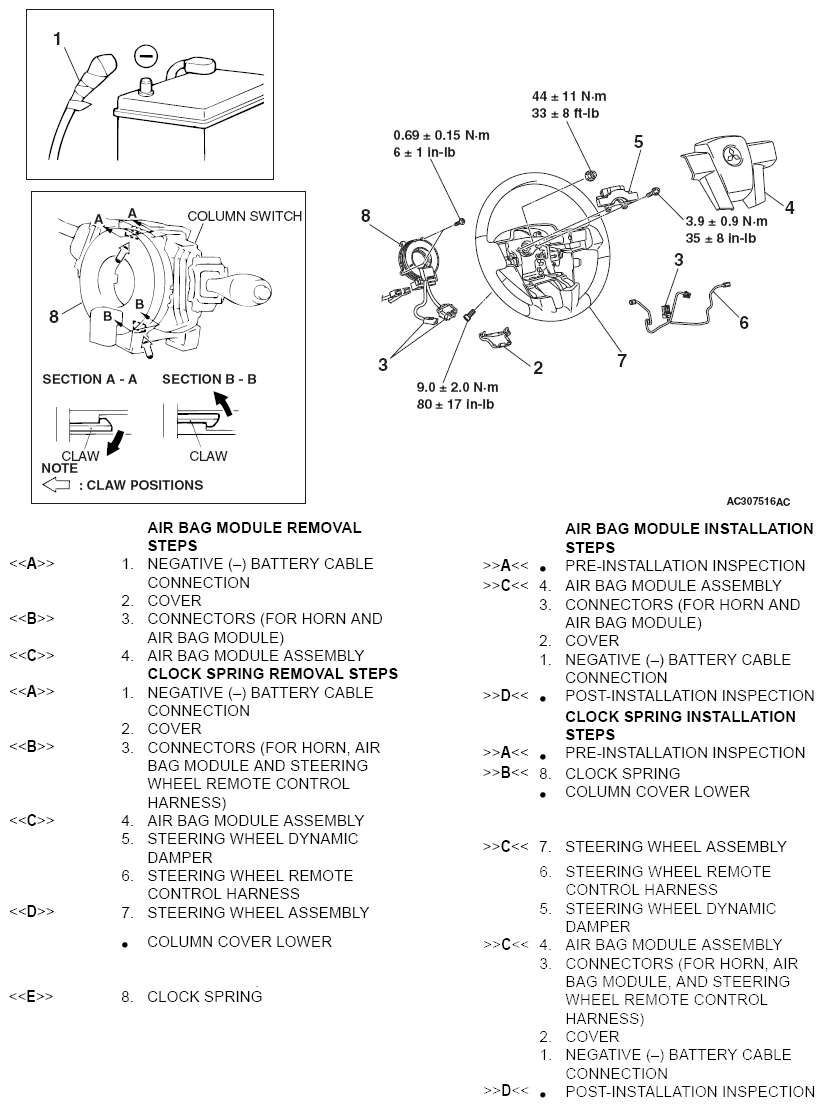

Fig 1: Air Bag Module (Driver's Side) And Clock Spring Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface(V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
MB992006: Extra Fine Probe
MB990803: Steering Wheel Puller
