Disassembly And Assembly: Notes

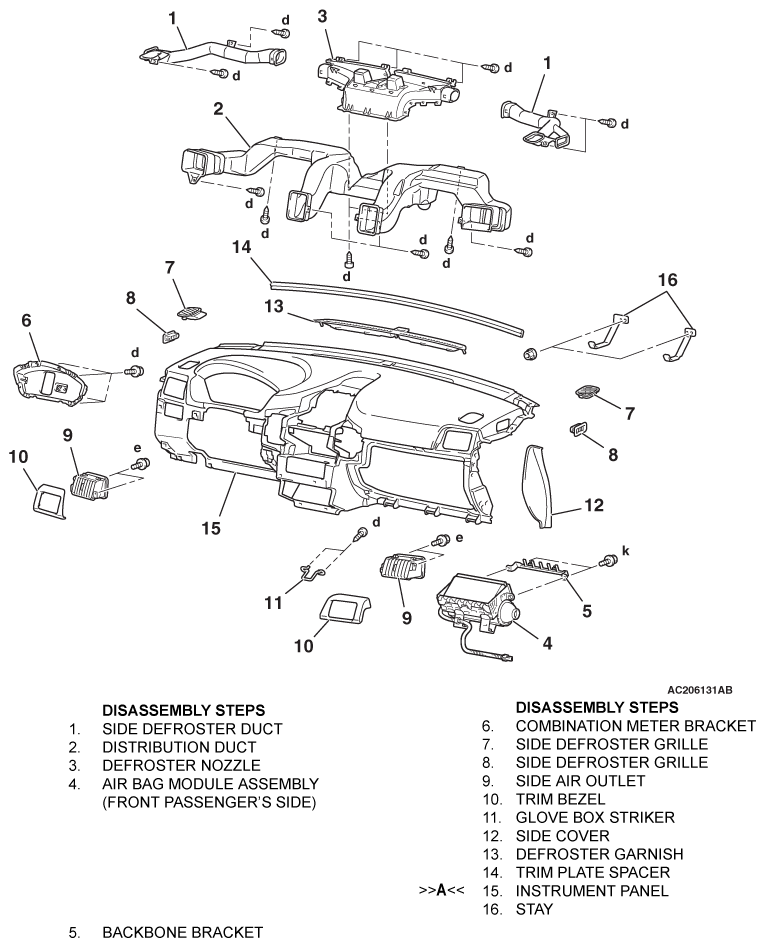

Fig 1: Instrument Panel Assembly Disassembly And Assembly
G06700294Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
