INSPECTION PROCEDURE 15: Shift Switch Assembly System: Notes

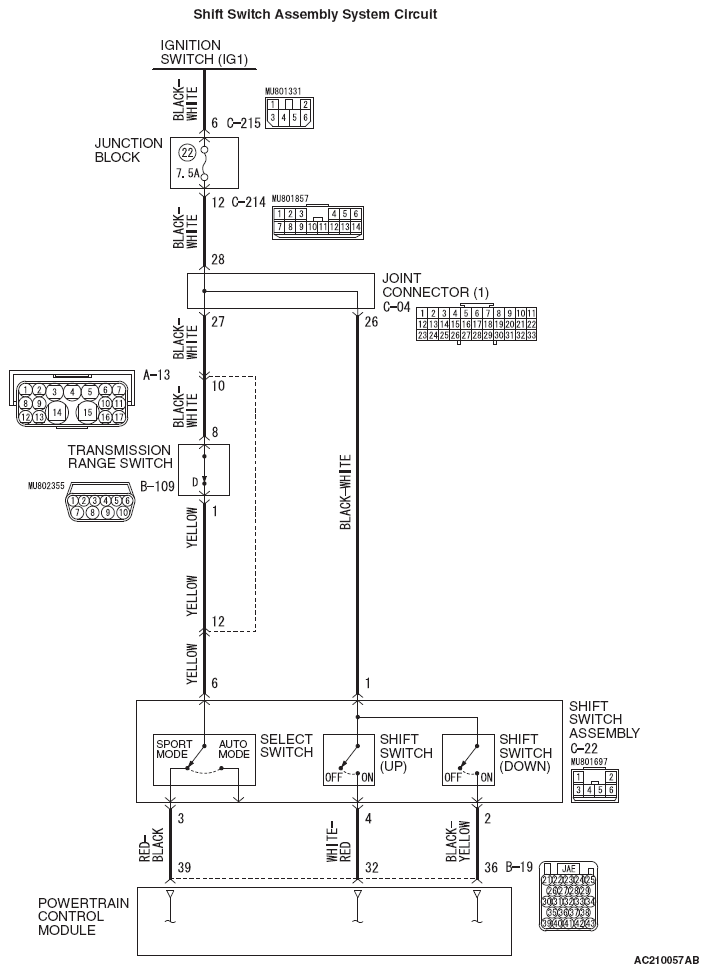

Fig 1: Shift Switch Assembly System Circuit Diagram
G06696017Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

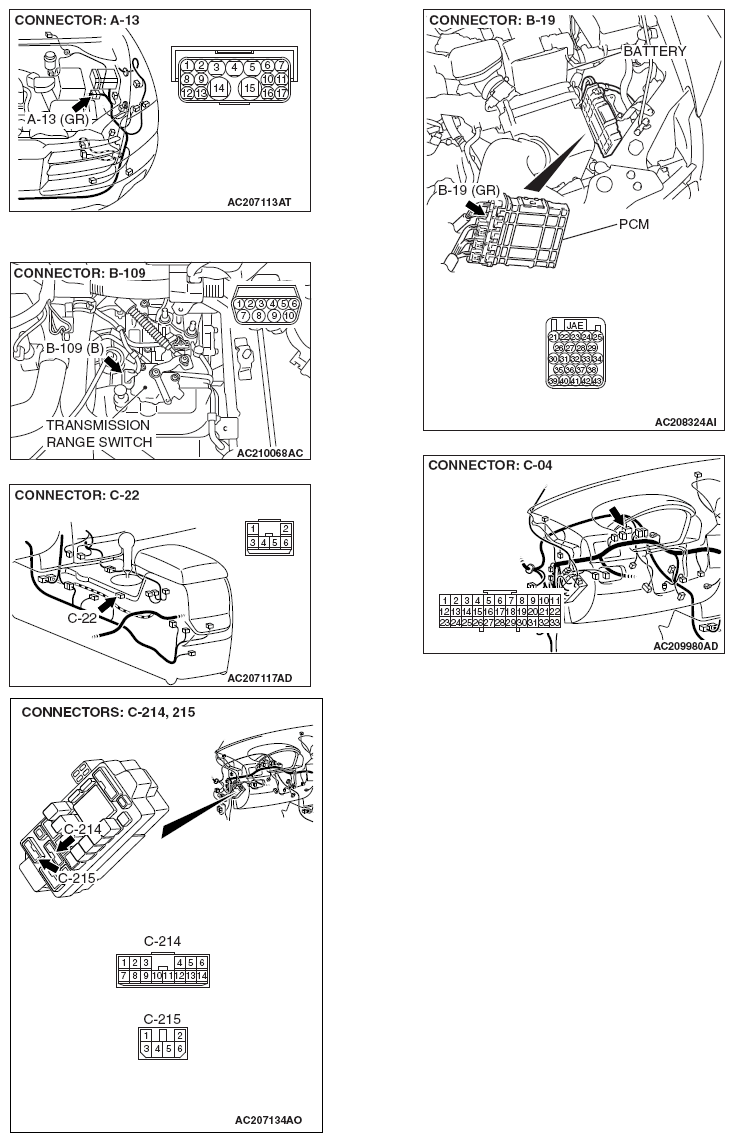

Fig 2: Connector A-13, B-19, B-109 And C-04
G06696018Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
