Sectional View <F4A5A>

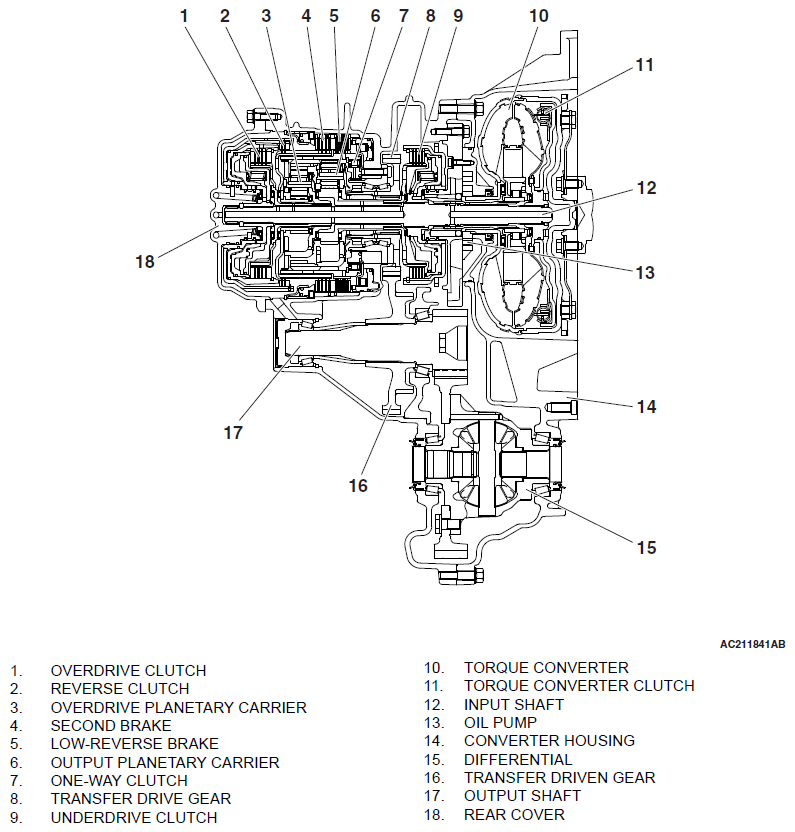

Fig 1: Sectional View Of Automatic Transaxle (F4A5A)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
