Automatic Transaxle Diagnosis & On-Vehicle Service
>>
General Description
>>
Shift Pattern Control
>>
Downshift Pattern
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Downshift Pattern

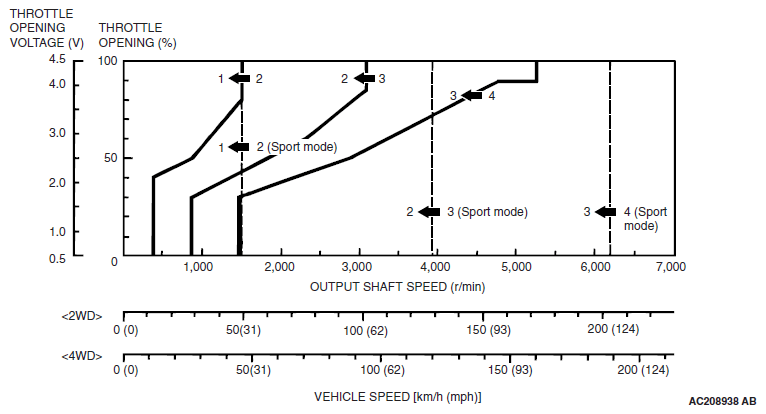

Fig 1: Shift Pattern Control - Downshift Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
