TCL Indicator Light Check

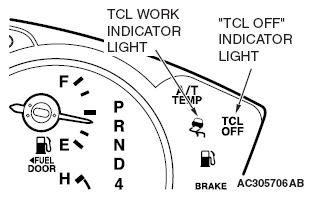

- Check that the "TCL OFF" indicator light and the TCL work indicator light illuminate for three seconds when the ignition switch is turned to the "ON" position.

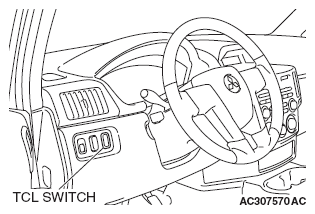

- Check that the "TCL OFF" indicator light illuminates and goes off in cycles each time the TCL switch is pushed after starting the engine.
- Check that the "TCL OFF" indicator light and the TCL work indicator light do not illuminate, when driving at 30 km/h (37.5 mph) for more than 2 seconds.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- If defective, repair it. (Refer to
INSPECTION PROCEDURE 1, 2, 3 AND 4 ).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
