Removal And Installation

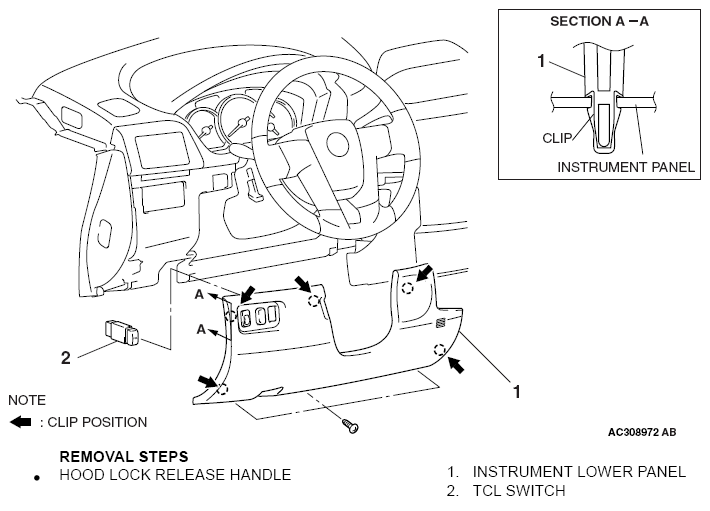

Fig 1: Removal/Installation Of TCL Switch And Instrument Lower Panel
G06699146Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
