During Normal Braking

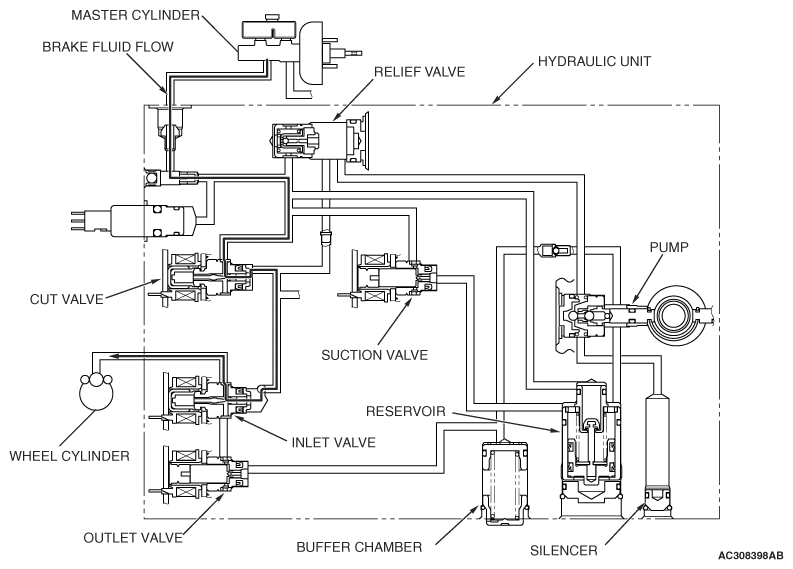

Fig 1: Active Skid Control System Operation Diagram - During Normal Braking
G06696350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The brake fluid flows from the master cylinder to the cut valve and the inlet valve to supply fluid pressure to the relevant wheels.

STATUS OF THE OPERATION VALVE

STATUS OF OPERATION VALVE

ITEM ENERGIZATION OPEN/CLOSE
Cut valve OFF Open
Suction valve OFF Closed
Inlet valve OFF Open
Outlet valve OFF Closed
