Removal And Installation: Notes

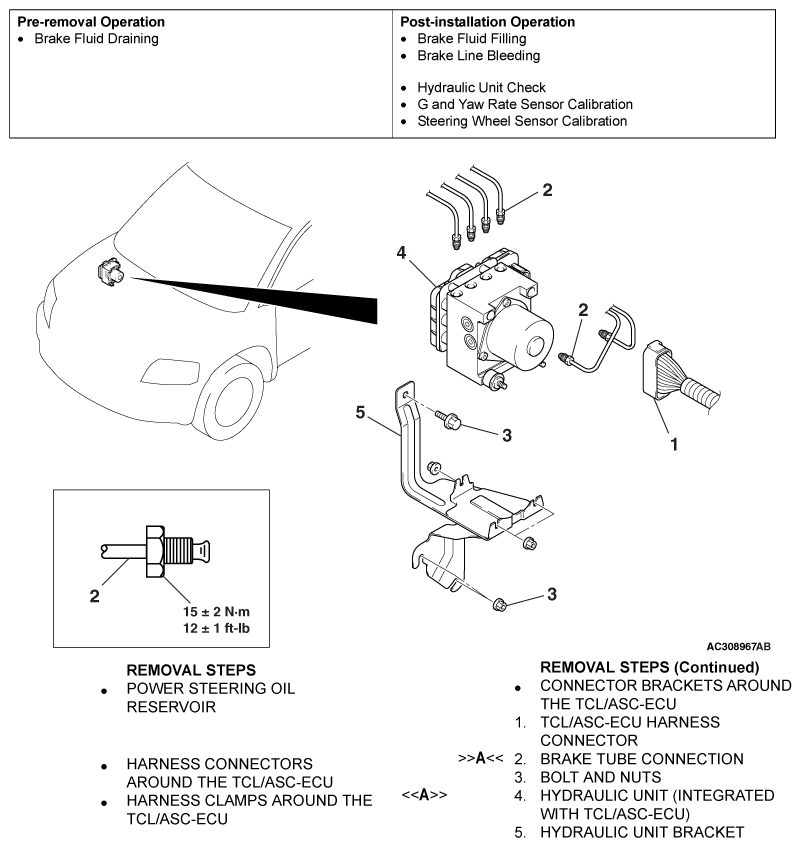

Fig 1: Removal/Installation Of Hydraulic Unit Components
G06696550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
