Fluid Replacement
- Raise and support the front wheels.
- Disconnect the return hose connection, and then connect a vinyl hose to the return hose, and drain the fluid into a container.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

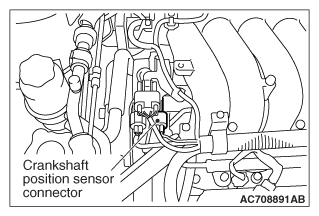

- Disconnect the crankshaft position sensor connector.
- While operating the starter motor intermittently, turn the steering wheel all the way to the left and right several times to drain all of the fluid.
- Connect the return hose securely, and then secure with the clip.
- Fill the oil reservoir with GENUINE MITSUBISHI POWER STEERING FLUID or ATF DEXRON III/DEXRON II up to the lower position of the filler, and then bleed the air (Refer to POWER STEERING SYSTEM AIR BLEEDING
).
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
