Removal And Installation: Notes

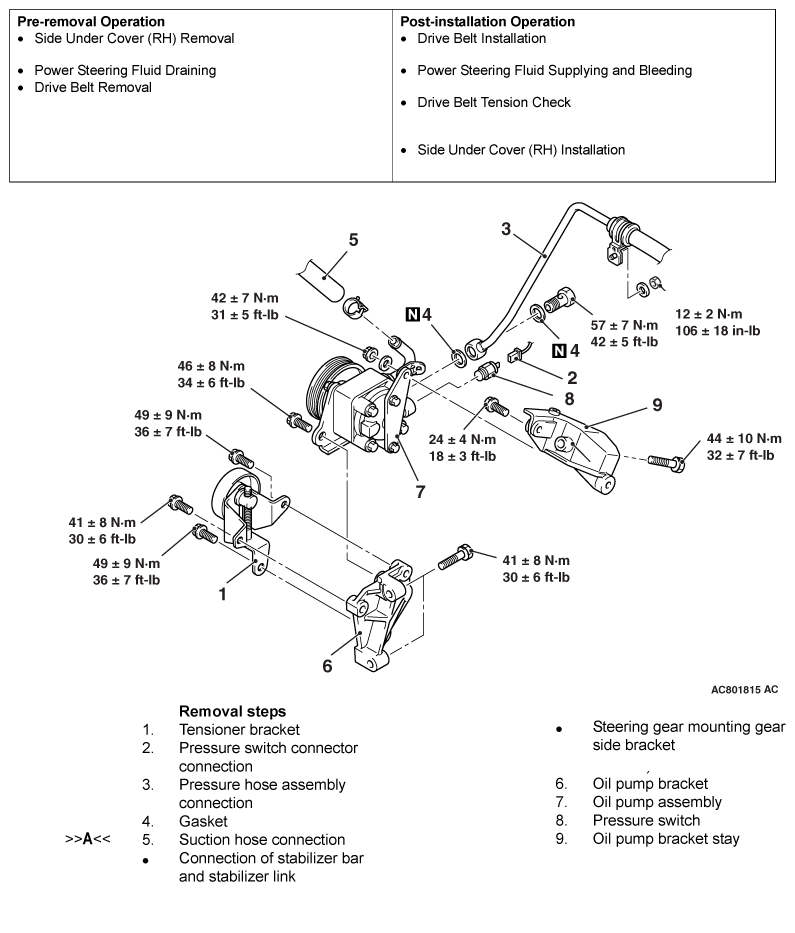

Fig 1: Power Steering Oil Pump Components With Torque Specifications
G06700033Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
