>>B<< Front Axle CROSSMEMBER Stay Installation

Ensure that the crossmember mounting bolts have been tightened to 180-20 N.m (133-15 ft-lb). Then install the front axle crossmember stay with the self-locking nut.

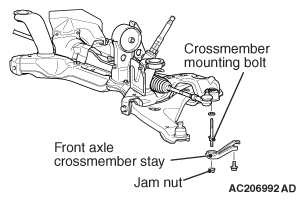

Fig 1: Crossmember Mounting Bolts And Front Crossmember Stay
G06700018Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
