TCL Switch

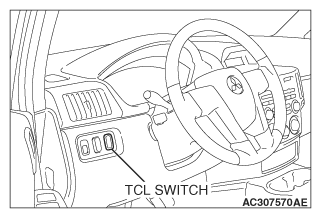

This switch is mounted on the left side of the instrument panel, and turns on and off the system.
TCL SWITCH OPERATION AND THEIR RESPECTIVE CONTROL
TCL SWITCH OPERATION
| TCL SWITCH OPERATION | ACTIVE STABILITY CONTROL | TRACTION CONTROL | |
|---|---|---|---|
| BRAKE CONTROL | ENGINE CONTROL | ||
| Not operated | Active | Active | Active |
| Operated | Inactive | Active | Inactive |
NOTE:
- The Traction control will activate when the system has not been disabled by the TCL switch, and the vehicle speed has reached 6 - 14 km/h (4 - 9 mph).
- The traction control will deactivate when the front wheel speed (both wheels) have decreased to 2 - 6 km/h (1 - 4 mph) for one second or more (four seconds or more if the system is controlling the engine output).
- The Active stability control will be activated when the vehicle speed exceeds 20 km/h (12 mph).
- The Active stability control will deactivate when the vehicle speed has decreased to 15 km/h (9 mph) or lower.
