INSPECTION PROCEDURE 8: The navigation screen is not displayed at all.: Notes

CAUTION: Before replacing the navigation unit or multi-center display, ensure that the power supply circuit and the ground circuit are normal. (Check that the voltage is 10 V or more.)

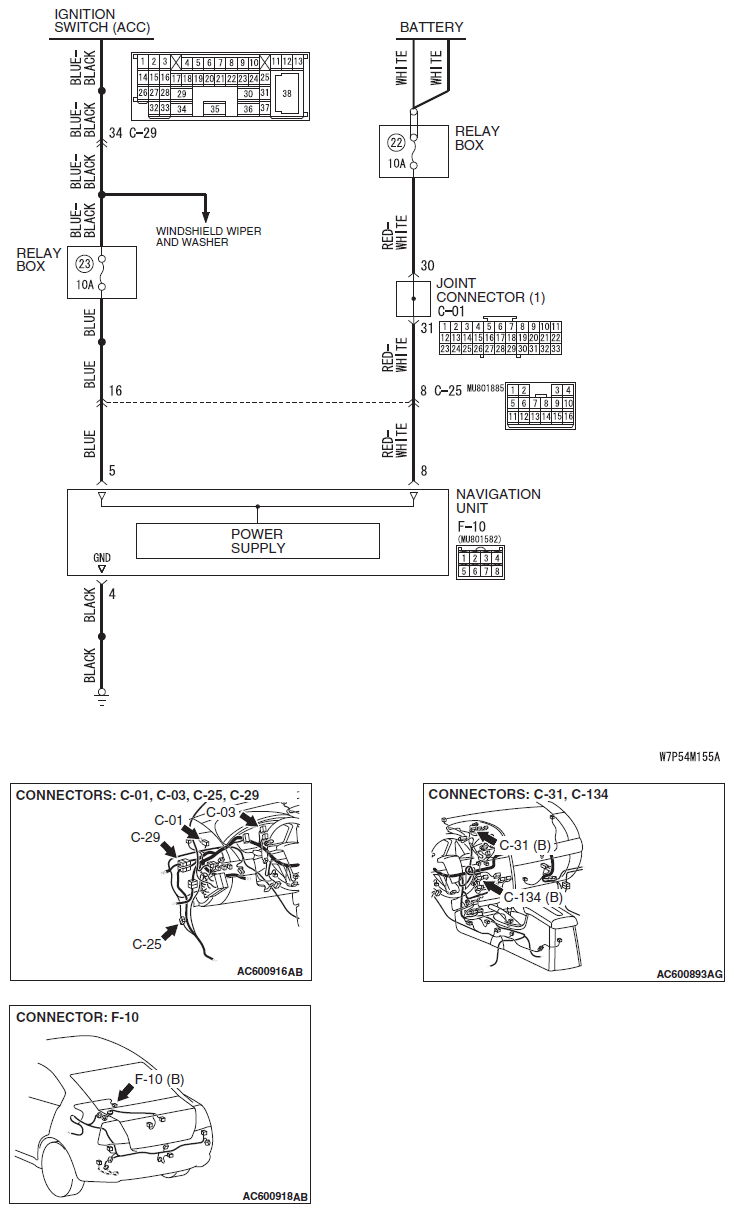

Fig 1: Navigation Unit Or Multi-Center Display Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
