INSPECTION PROCEDURE 8: Defogger Function Does Not Operate.: Notes

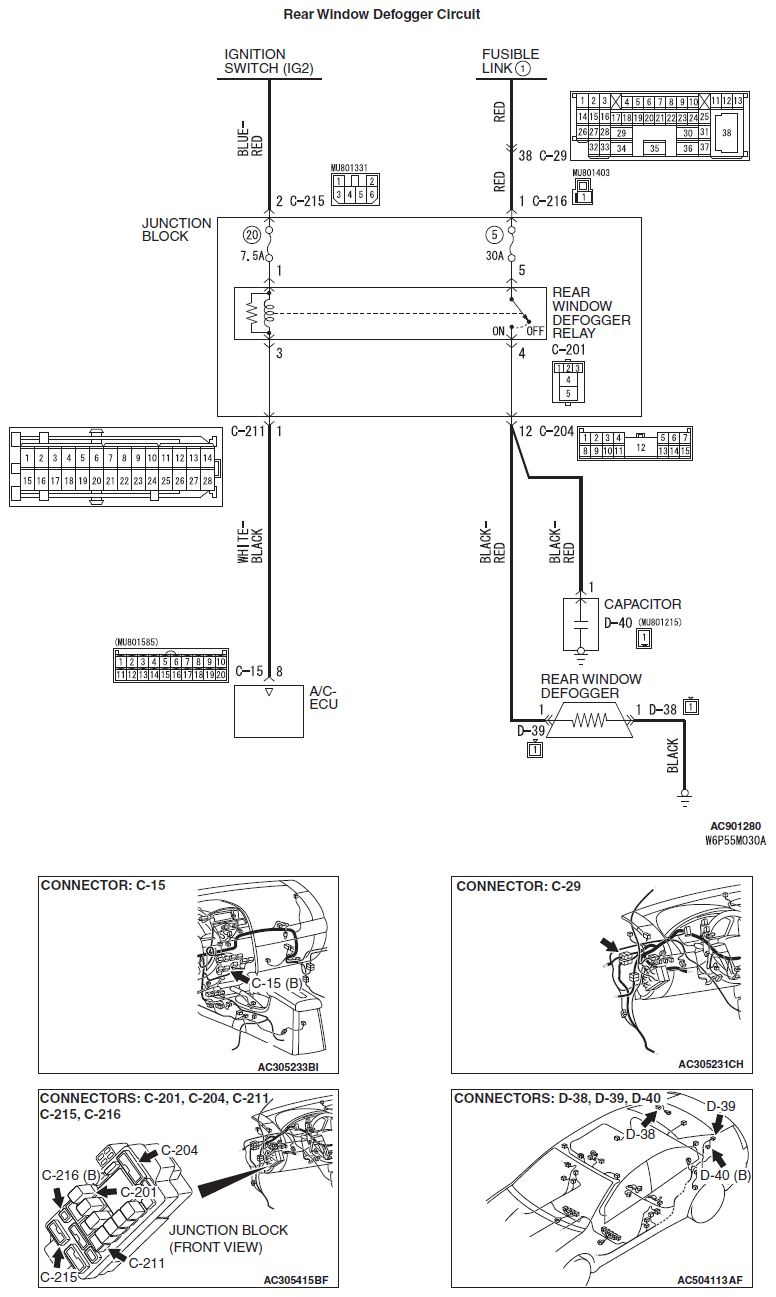

Fig 1: Rear Window Defogger Circuit Diagram
G06715387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
