DTC C1340: Stoplight switch: Notes

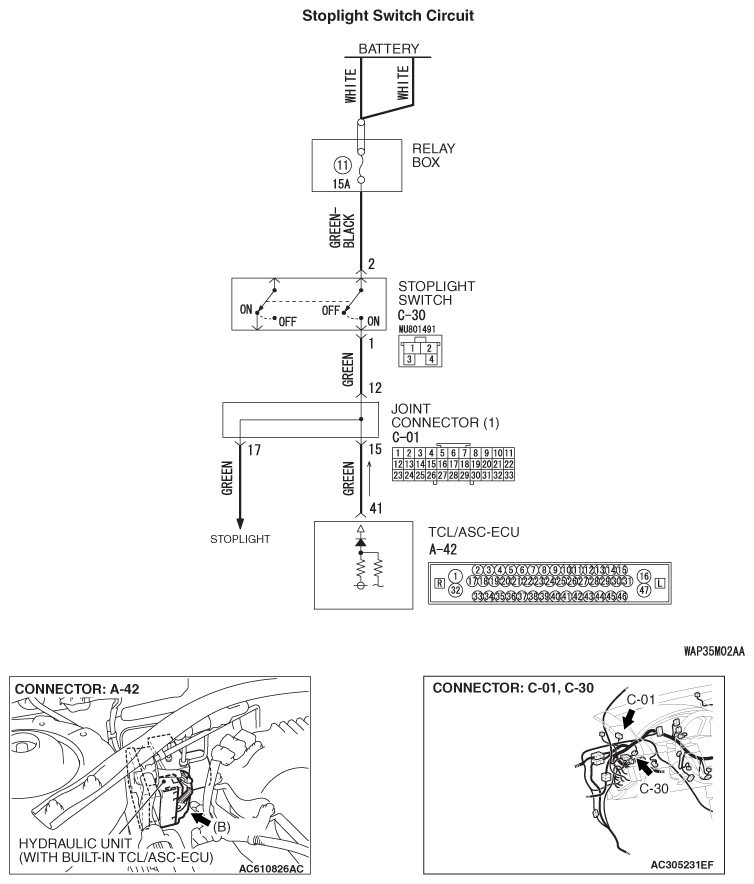

Fig 1: Stoplight Switch Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
