Removal And Installation <3.8L Engine>: Notes

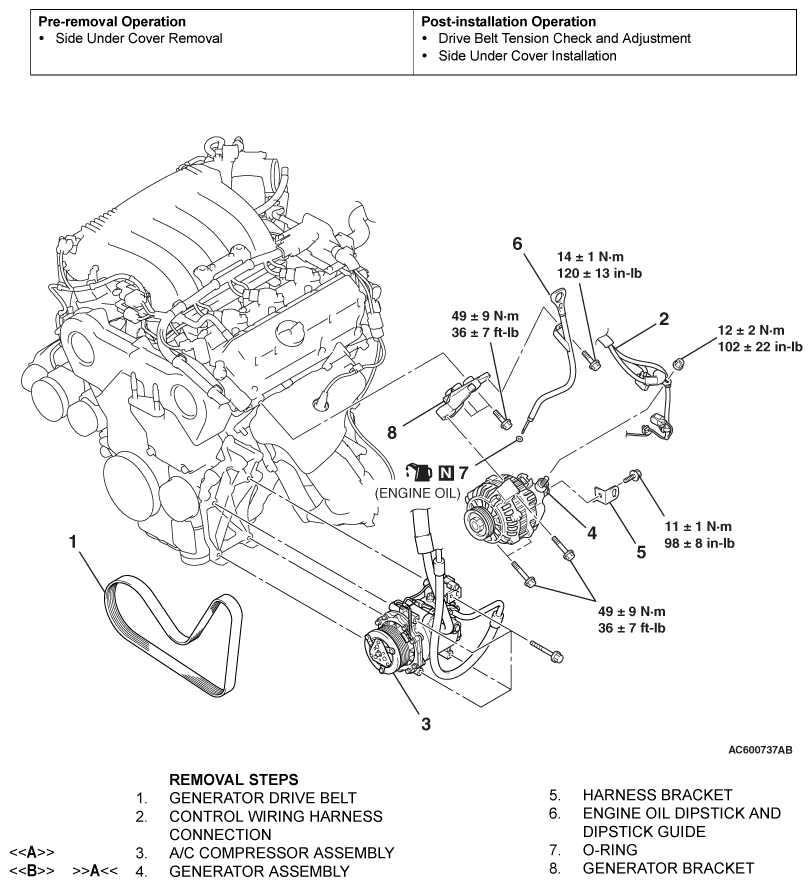

Fig 1: Exploded View Of Generator Assembly (3.8L Engine) With Torque Specifications
G06715839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
