>>B << Front Axle CROSSMEMBER Stay Installation

Ensure that the crossmember mounting bolts have been tightened to 180 ± 20 N.m (133 ± 15 ft-lb), and then install the front crossmember stay with the jam nut.

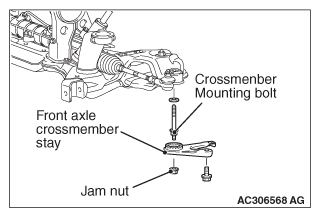

Fig 1: Installing Front Axle Crossmember Stay
G06715930Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
