DTC P0705: Malfunction of Transmission Range Switch: Notes

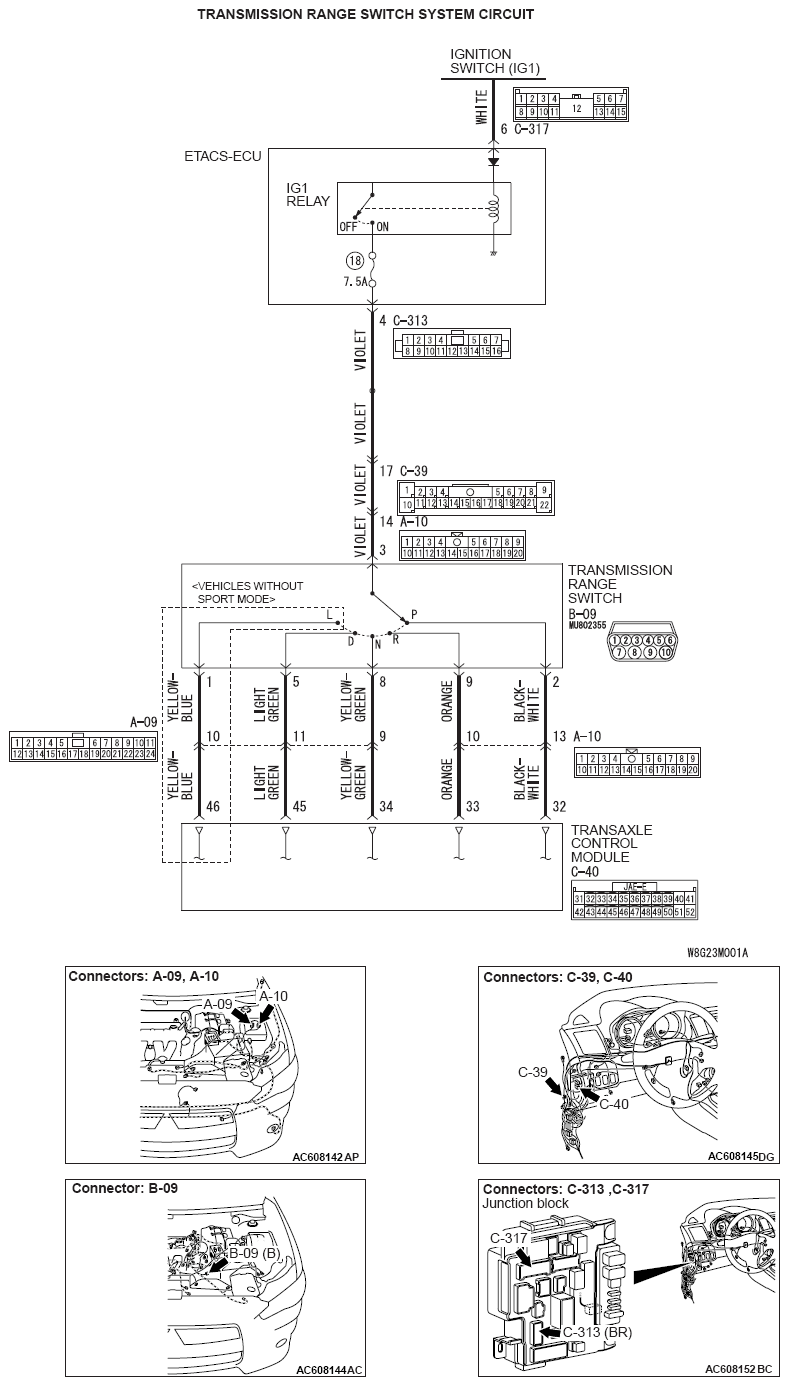

Fig 1: Transmission Range Switch System Circuit Diagram
G07029286Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
