DTC P1637: Malfunction of Memory Backup: Notes

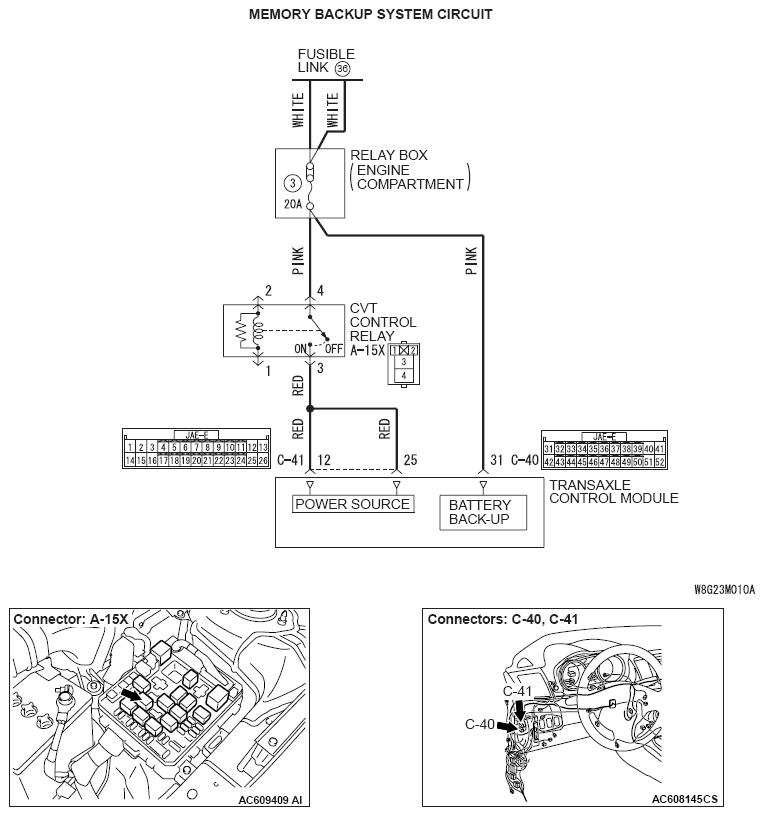

Fig 1: Memory Backup System Circuit Diagram
G07029310Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
