LOGIC FLOW CHARTS (Monitor Sequence)

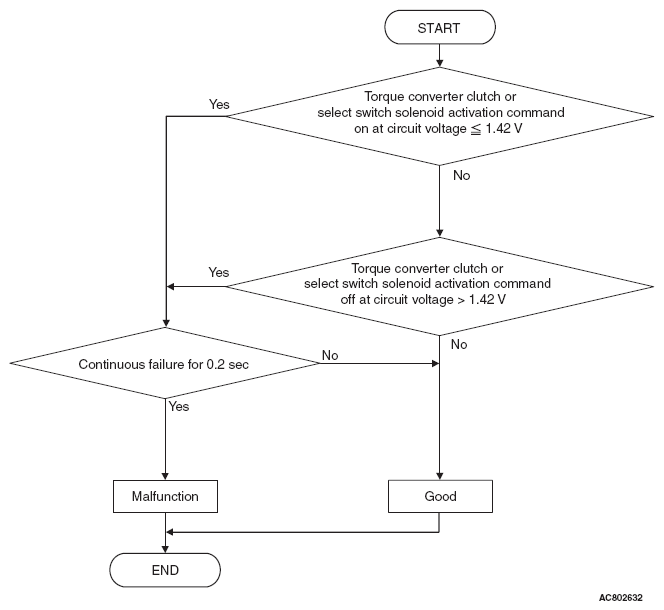

Fig 1: Logic Flow Chart (Monitor Sequence)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
