Lancer DE, Automatic CVT
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Continuously Variable Transaxle On-Vehicle Service - Except Lancer Evolution
>>
Diagnosis
>>
Diagnostic Trouble Code Procedures
>>
DTC U0100: CAN Time-out Error (Engine)
>>
LOGIC FLOW CHARTS (Monitor Sequence)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
LOGIC FLOW CHARTS (Monitor Sequence)

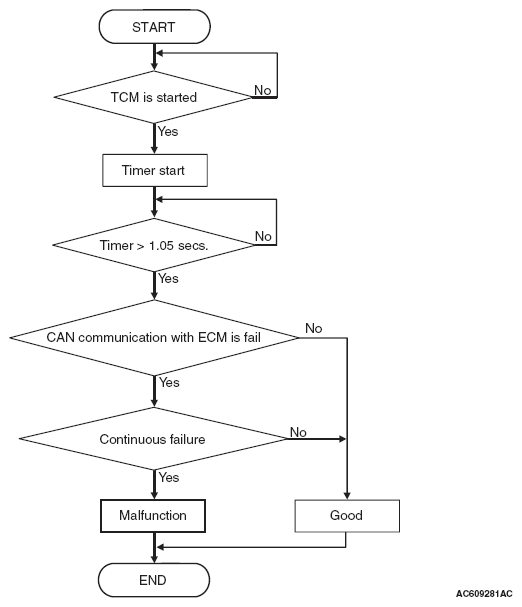

Fig 1: Logic Flow Chart (Monitor Sequence)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
