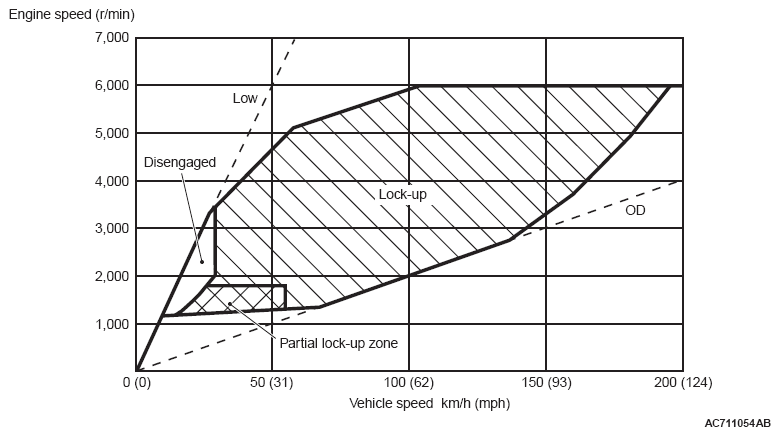

Fig 1: Ratio Pattern - Direct Control (Torque Converter Clutch Control) - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
By carefully controlling the direct operating pressure depending on the driving conditions, the shock-free direct operation from low speed has been achieved.
