< L Range (Vehicles Without Sport Mode) >

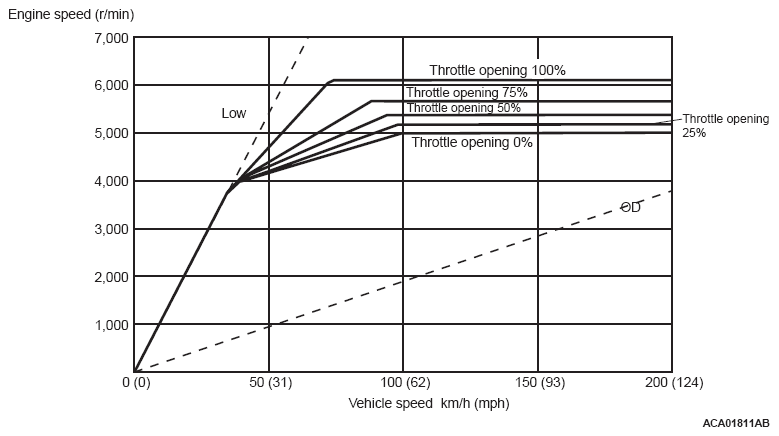

Fig 1: Ratio Pattern - L Range (Vehicles Without Sport Mode)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

By limiting the shift range to the area around the lowest pulley ratio, the powerful driving force and engine brake is secured.
