Mitsubishi
>>
2011
>>
Lancer DE, Automatic CVT
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Continuously Variable Transaxle On-Vehicle Service - Except Lancer Evolution
>>
General Information
>>
System Construction Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Construction Diagram

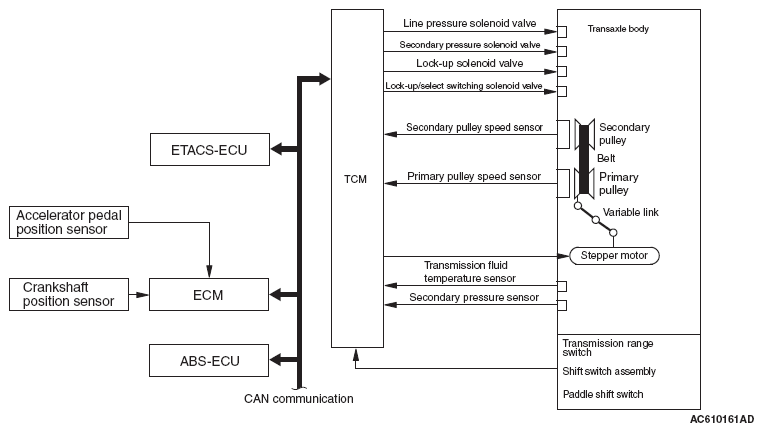

Fig 1: CVT System Construction Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
