CVT Control Component Layout

CVT CONTROL COMPONENT LAYOUT TABLE

Name Symbol
Accelerator pedal position sensor K
CVT assembly connector (Solenoid valve assembly, transmission fluid temperature sensor) F
CVT control relay C
Crankshaft position sensor A
Data link connector I
Paddle shift switch < Vehicles with sport mode > H
Primary pulley speed sensor E
Secondary pulley speed sensor B
Shift lock solenoid L
Shift switch assembly < Vehicles with sport mode > L
Stoplight switch J
TCM G
Transmission range switch D

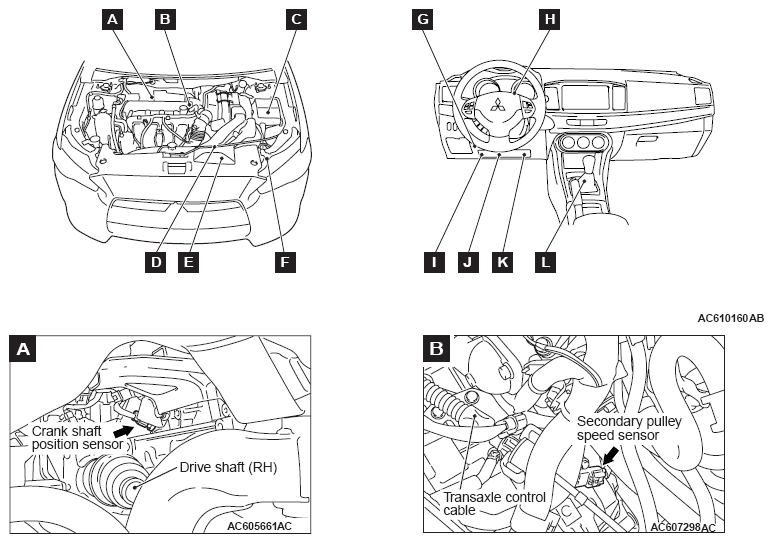

Fig 1: Identifying CVT Control Component Layout (1 Of 3)
G07029338Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

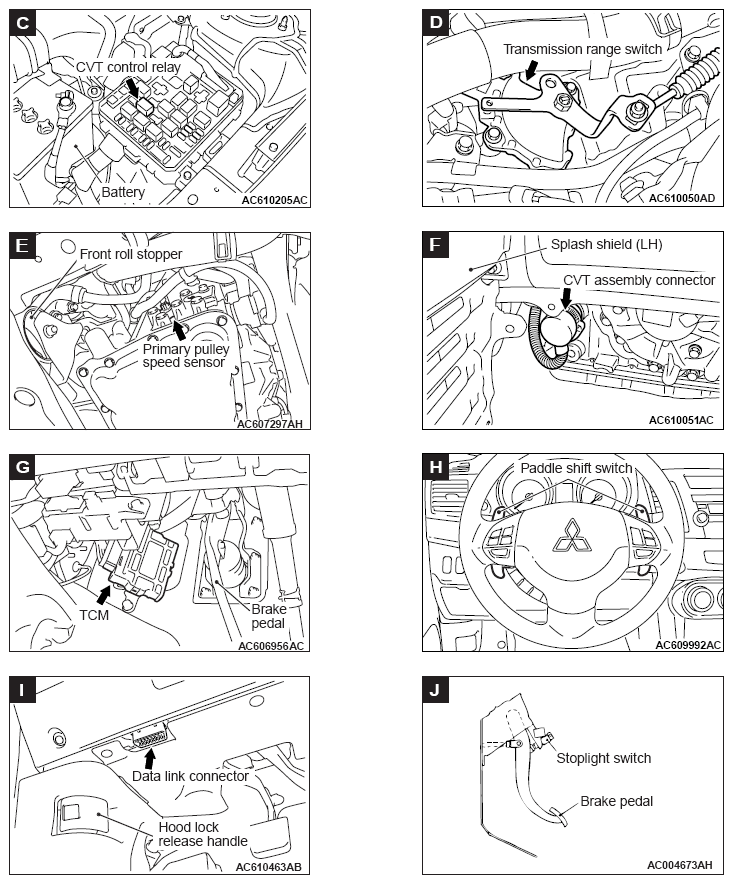

Fig 2: Identifying CVT Control Component Layout (2 Of 3)
G07029339Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

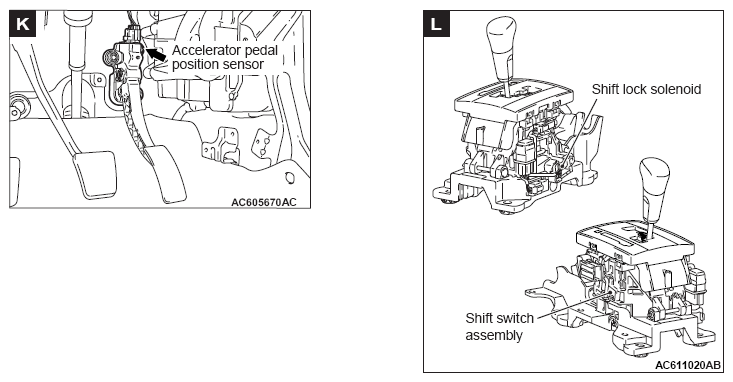

Fig 3: Identifying CVT Control Component Layout (3 Of 3)
G07029340Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
