<< F >> Engine Assembly Holding

CAUTION: Since A and B in the figure differ in height, adjust the height by using the washer (approximately 1.5 mm) at B before tightening the bolts to the specified torque.
  1. Tighten the engine hanger plate (special tool: MB992201) to the specified torque at A in the figure (injector protector mounting bolt) and B in the figure (vacuum pipe assembly mounting bolt).

    Tightening torque: 20 ± 2 N.m (15 ± 1 ft-lb) (A in the figure)

    Tightening torque: 11 ± 1 N.m (98 ± 8 in-lb) (B in the figure)

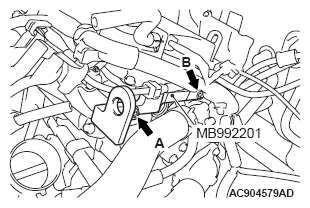

    Fig 1: Locating Injector Protector Mounting Bolt And Vacuum Pipe Assembly Mounting Bolt
    G07031419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the hanger (special tool: MB991527).

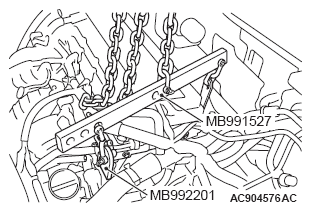

    Fig 2: Installing Hanger (Special Tool MB991527)
    G07027081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. < When engine hanger (Special tool: MB991928) is used >
    1. Assemble the engine hanger (Special tool: MB991928). (Set the components below to the base hanger.)
      • Slide bracket (HI)
      • Foot x 4 (standard) (MB991932)
      • Joint x 2 (90) (MB991930)
    2. Set the feet of the special tool as shown in the figure.
      NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).
    3. Set the chain to hanger (special tool: MB991527) to support the engine and transaxle assembly. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.
      Fig 3: Setting Chain To Hanger (Special Tool MB991527) To Support Engine And Transaxle Assembly
      G05375587Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. < When using engine hanger (Special tool: MB991895) >
    1. Set the foot of the engine hanger (Special tool: MB991895) as shown in the figure.
      NOTE: Slide the front foot of the engine hanger (Special tool: MB991895) to balance the engine hanger.
    2. Set the chain to hanger (special tool: MB991527) to support the engine and transaxle assembly. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.
      Fig 4: Setting Foot Of Special Tool MB991895
      G05375589Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
