Engine brake learning feature on the descending slope

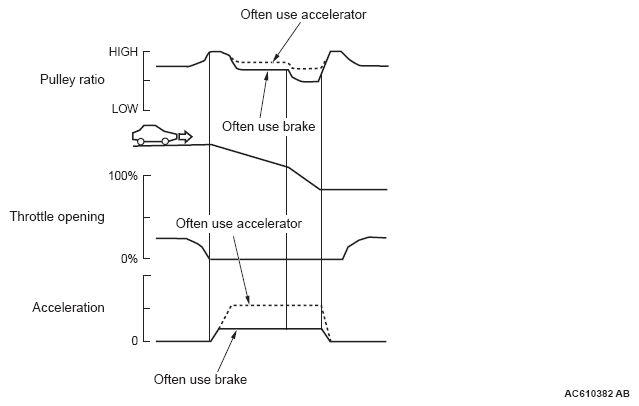

Fig 1: Engine Brake Learning Feature Reference Chart - Descending Slope
G07029265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Learning compensation is made to meet the tastes of a driver by judging the amount of the engine brake from the application of the accelerator or the brake.
