Removal And Installation (2.0L Engine Turbo): Notes

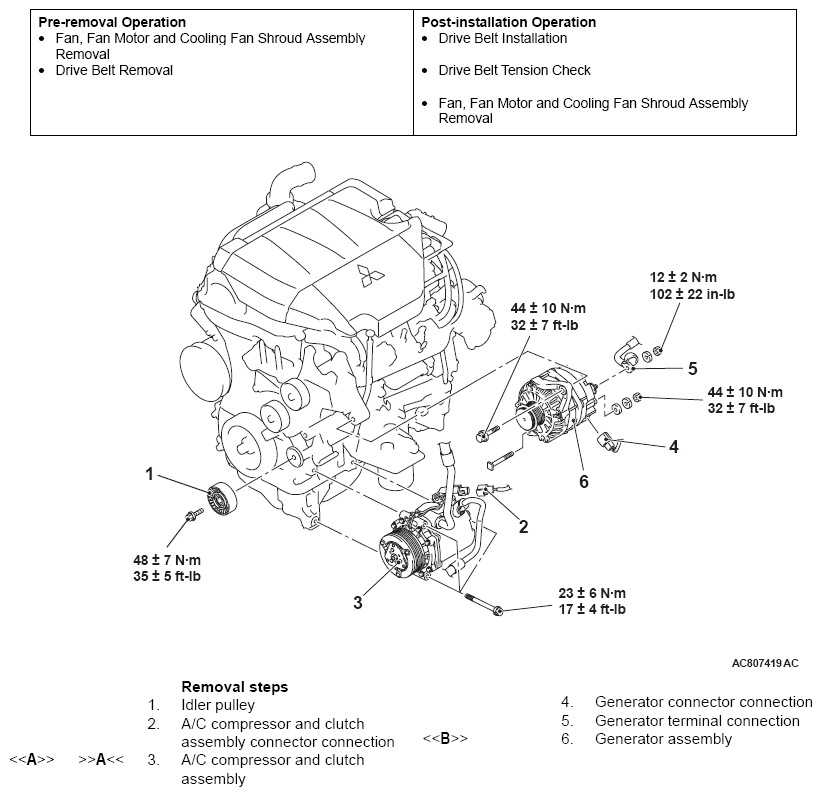

Fig 1: Removing/Installing Generator Assembly With Torque Specifications (2.0L Engine Turbo)
G07033883Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
