Transfer Oil Check

Remove the engine room under cover front B assembly. (Refer to UNDER COVER .)
Remove the filler plug and gasket.

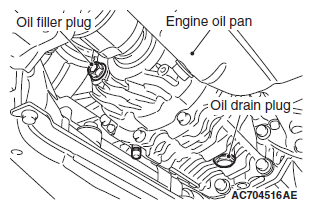

Fig 1: Identifying Crossmember, Oil Filler Plug And Oil Drain Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check that the oil level is not 14 mm (0.6 inch) below the bottom of the oil filler plug hole.
Check that the oil is not excessively foul and has moderate viscosity.
If the oil level is not in between the upper limit and the lower limit, refill the specified oil to the bottom of the oil filler plug hole.
Brand name: DiaQueen LSD gear oil

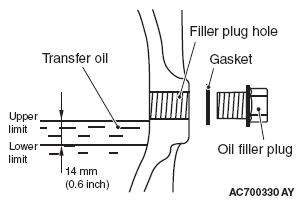

Fig 2: Identifying Filler Plug Hole, Filler Plug And Gasket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)
Install the engine room under cover front B assembly. (Refer to UNDER COVER .)
