DTC U0215: P/W SW (DR) LIN timeout: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

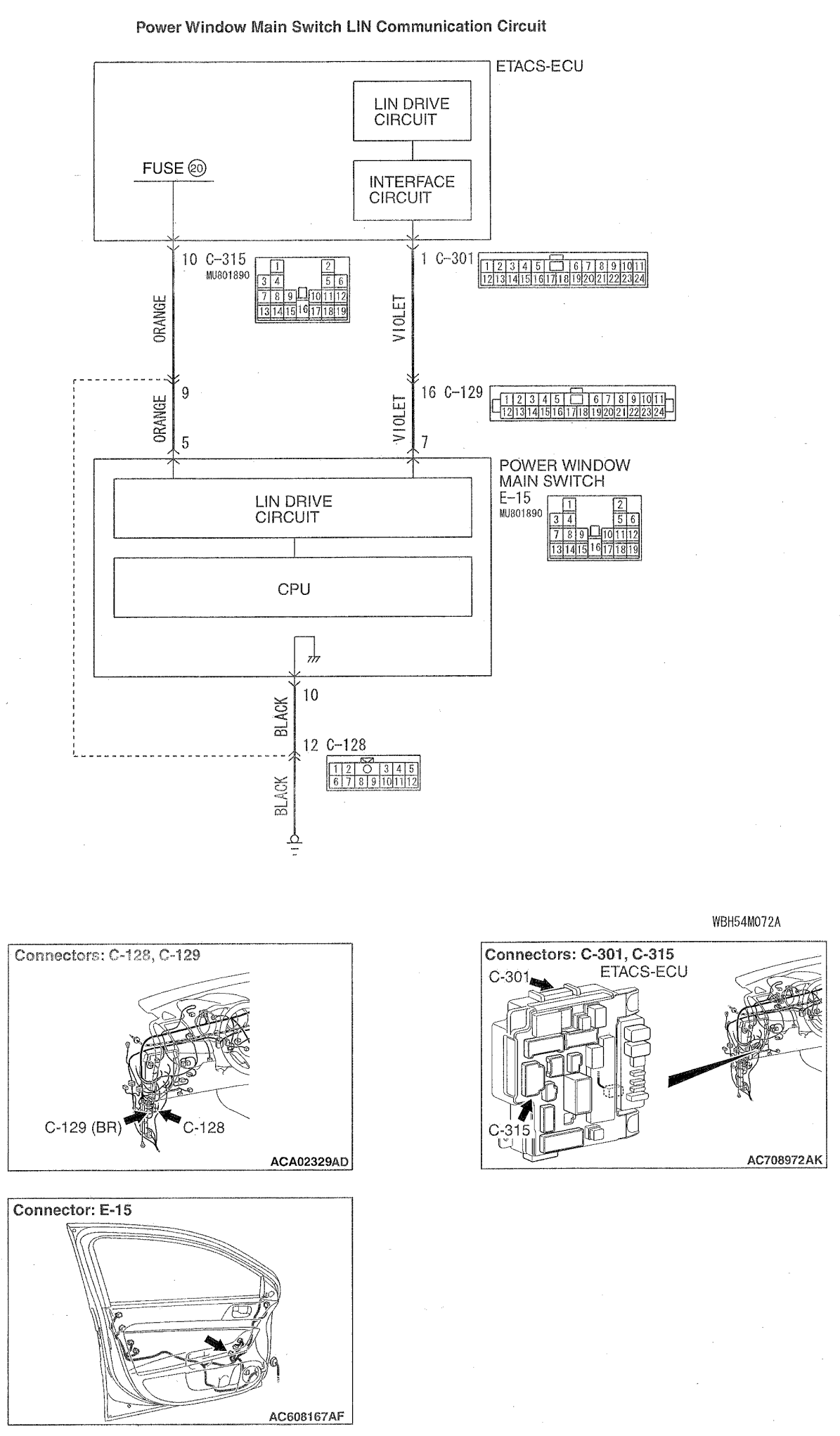

Fig 1: Power Window Main Switch LIN Circuit Diagram
G00505456Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
