Inspection Procedure 2: The USB adapter data cannot be replayed. < Vehicles with MMCS >: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

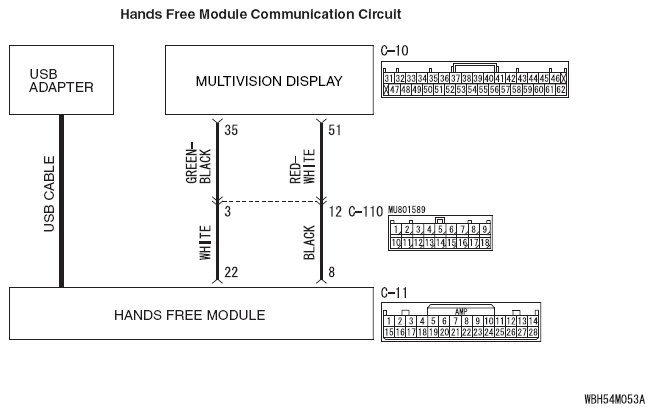

Fig 1: Hands Free Module Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

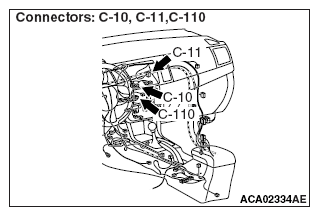

Fig 2: Locating Connectors C-10, C-11,C-110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
