Removal And Installation: Notes

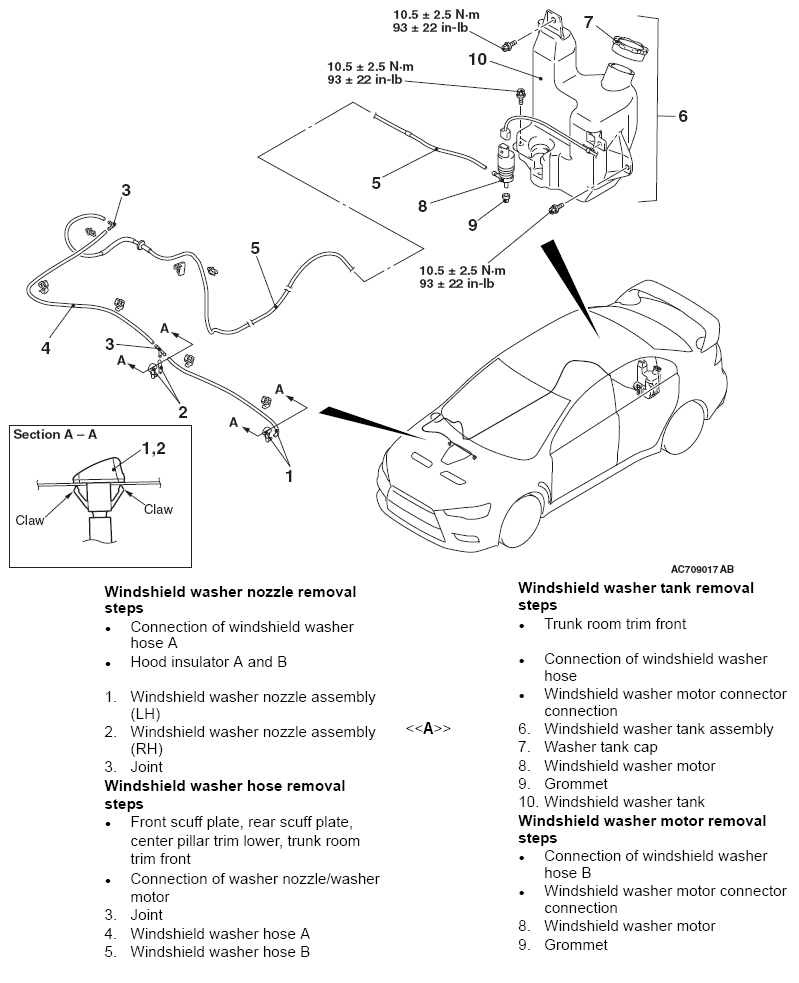

Fig 1: Windshield Washer Components With Torque Specifications
G06677939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH .
