DTC P1827: Shift Fork Position Sensor 2 System (Output range out)
>>
LOGIC FLOW CHARTS (Monitor Sequence)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
LOGIC FLOW CHARTS (Monitor Sequence)

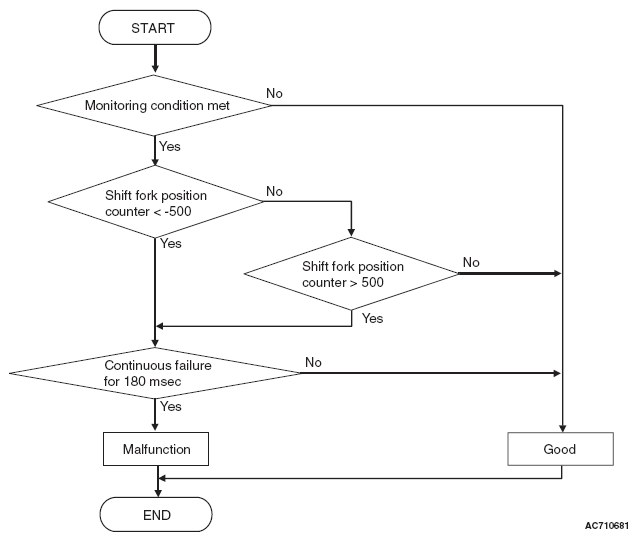

Fig 1: Logic Flow Chart (Monitor Sequence)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
