Theft Alarm System - Lancer Evolution
>>
General Information
>>
System Block Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Block Diagram

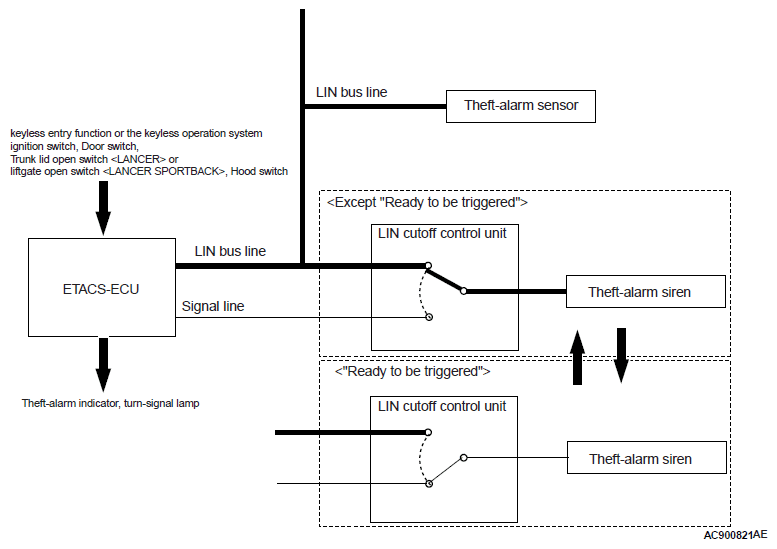

Fig 1: Theft Alarm System Block Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
