OEM Component Locations - Lancer Evolution: Grounding

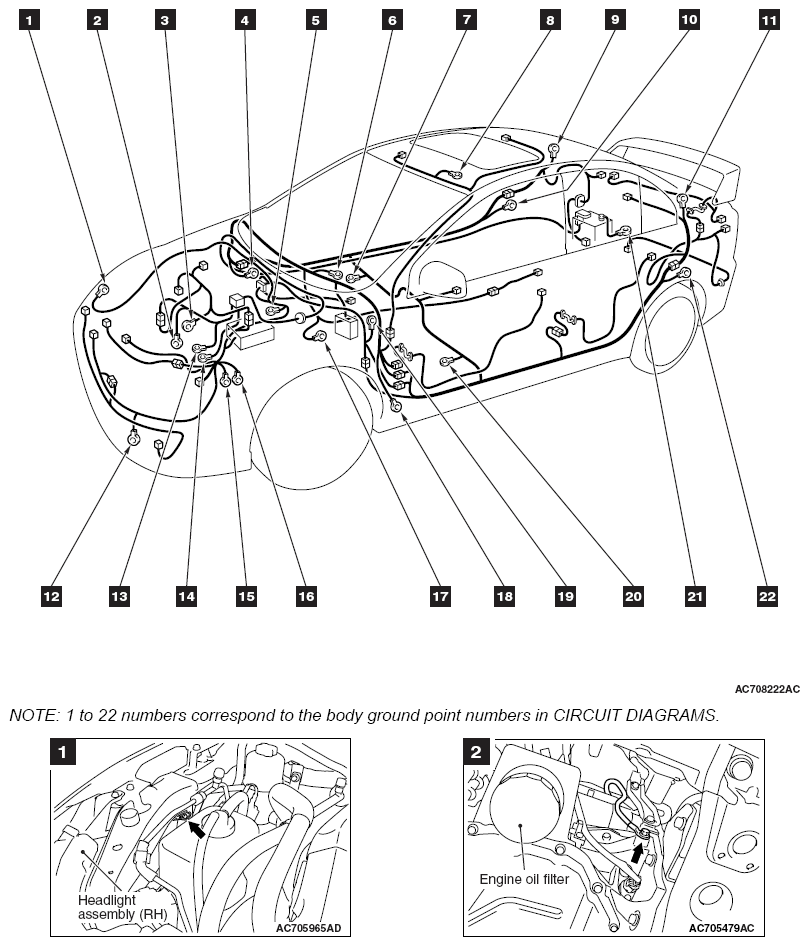

Fig 1: Locating Grounding Points (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

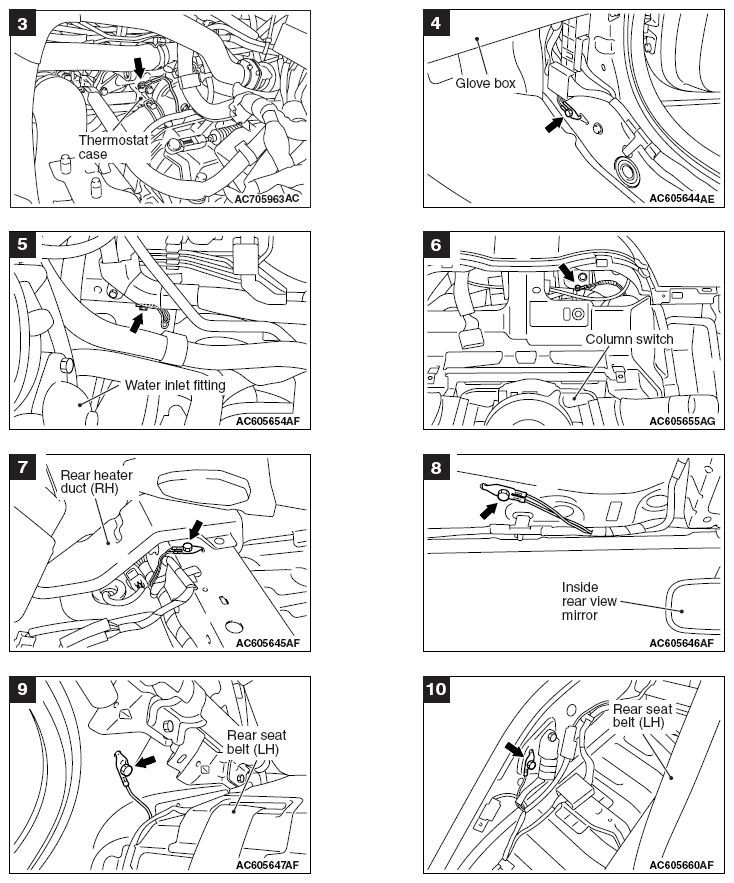

Fig 2: Locating Grounding Points (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

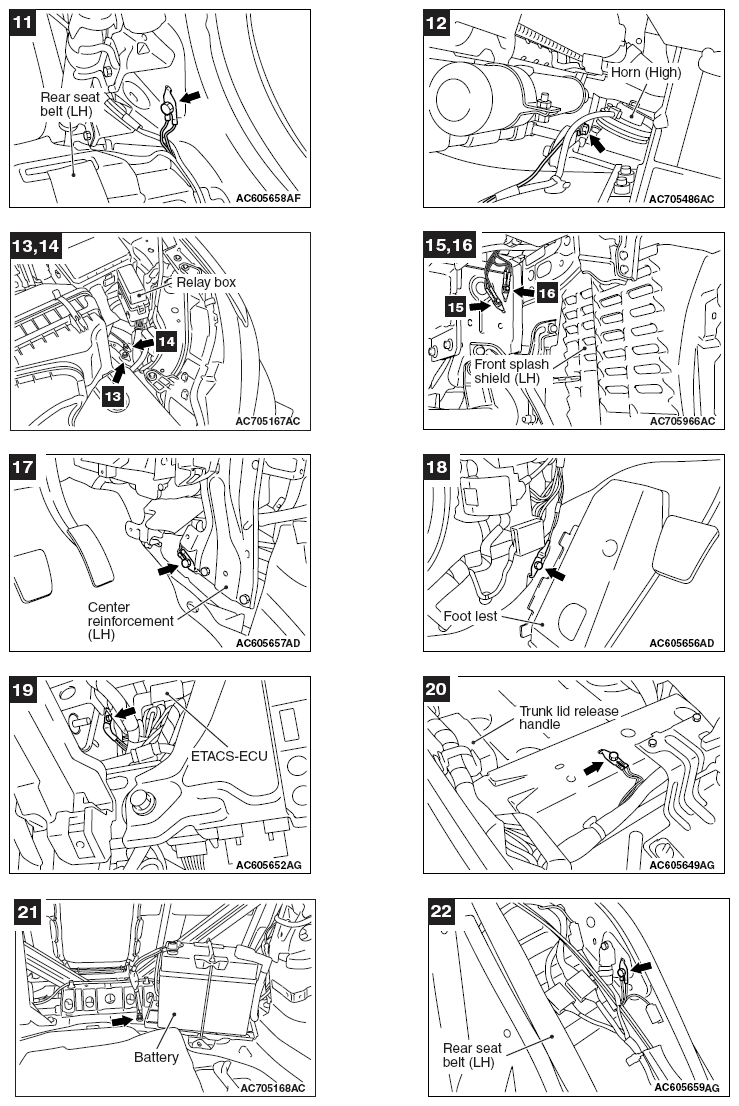

Fig 3: Locating Grounding Points (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
