Data List Reference Table

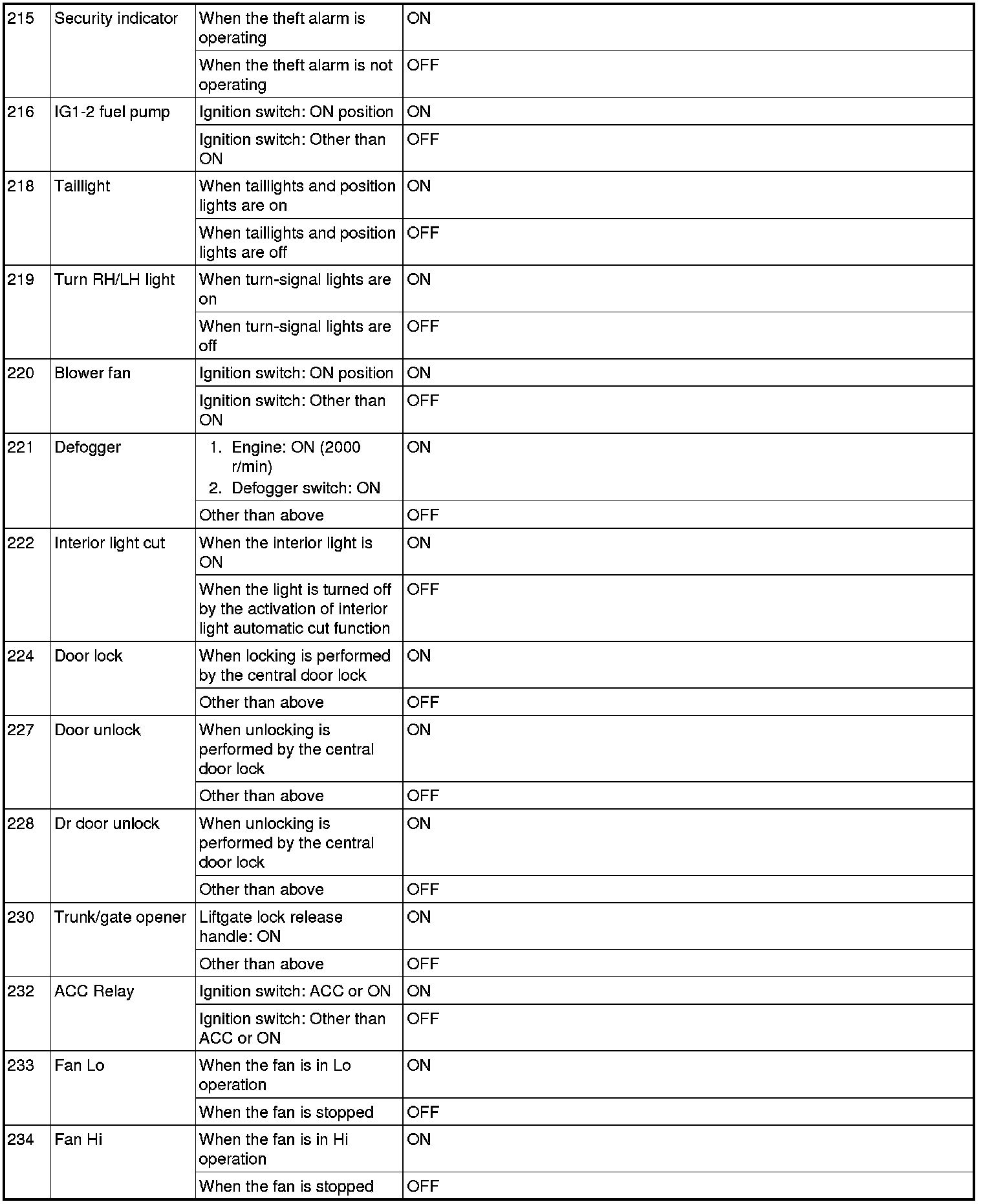

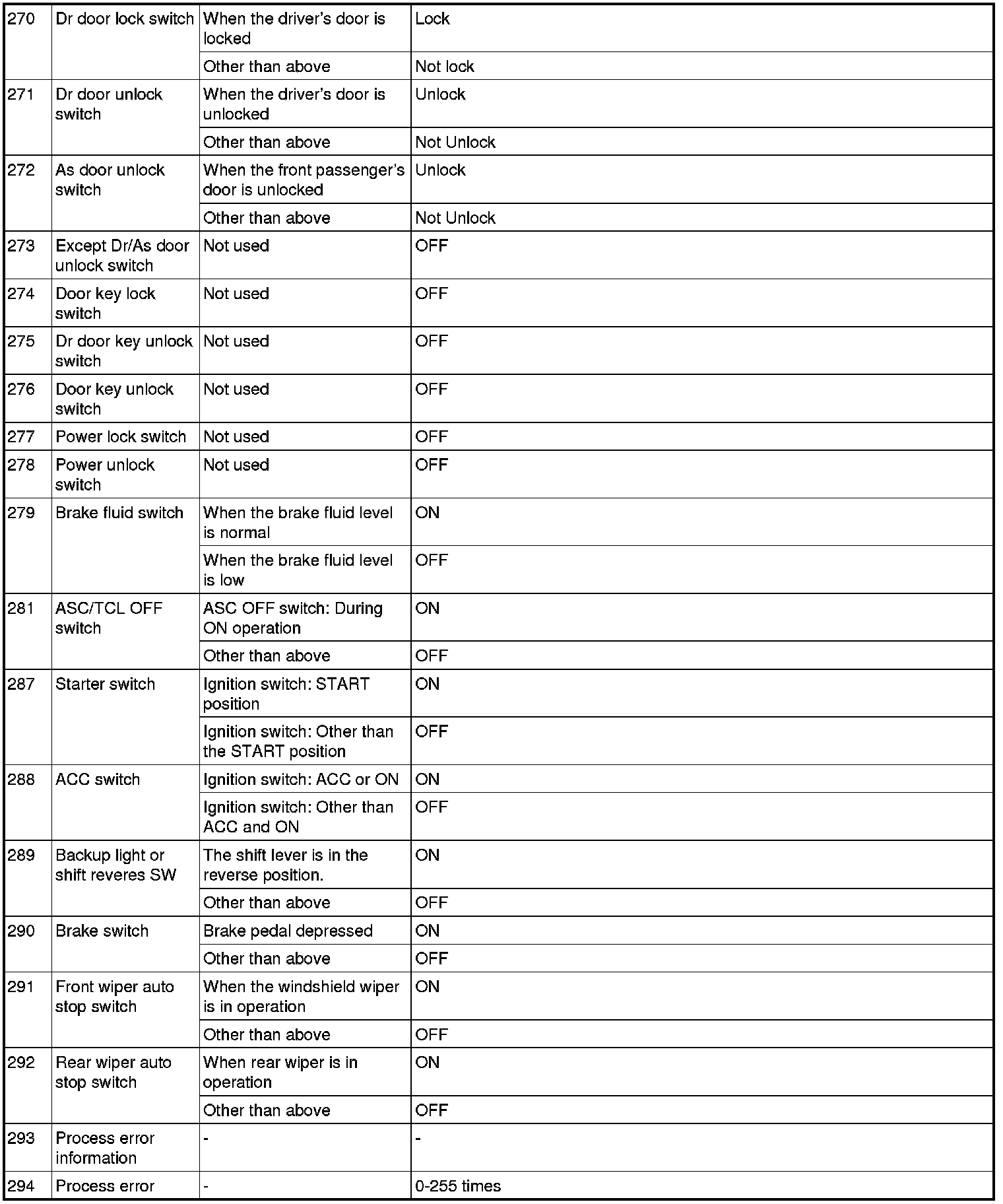

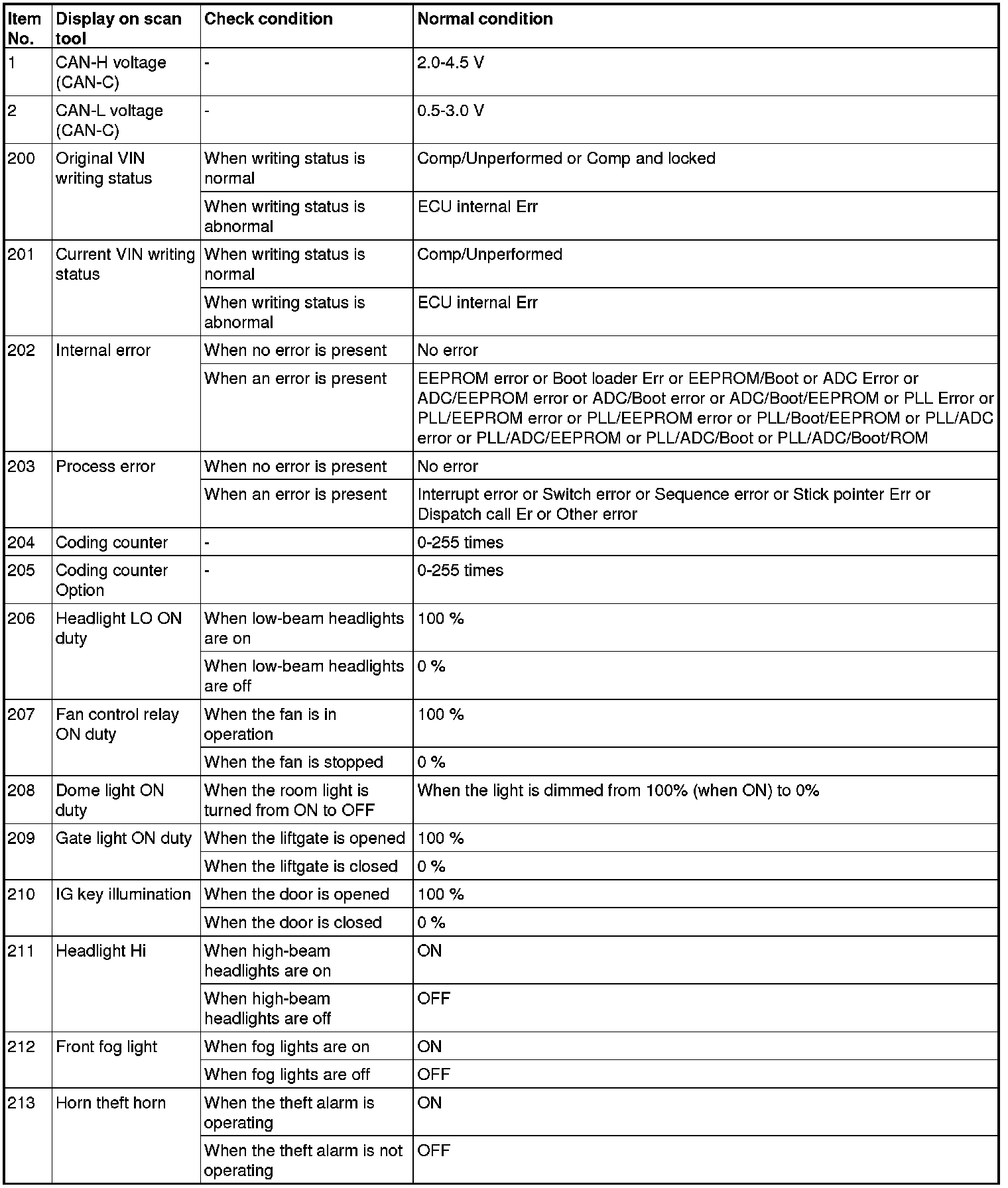

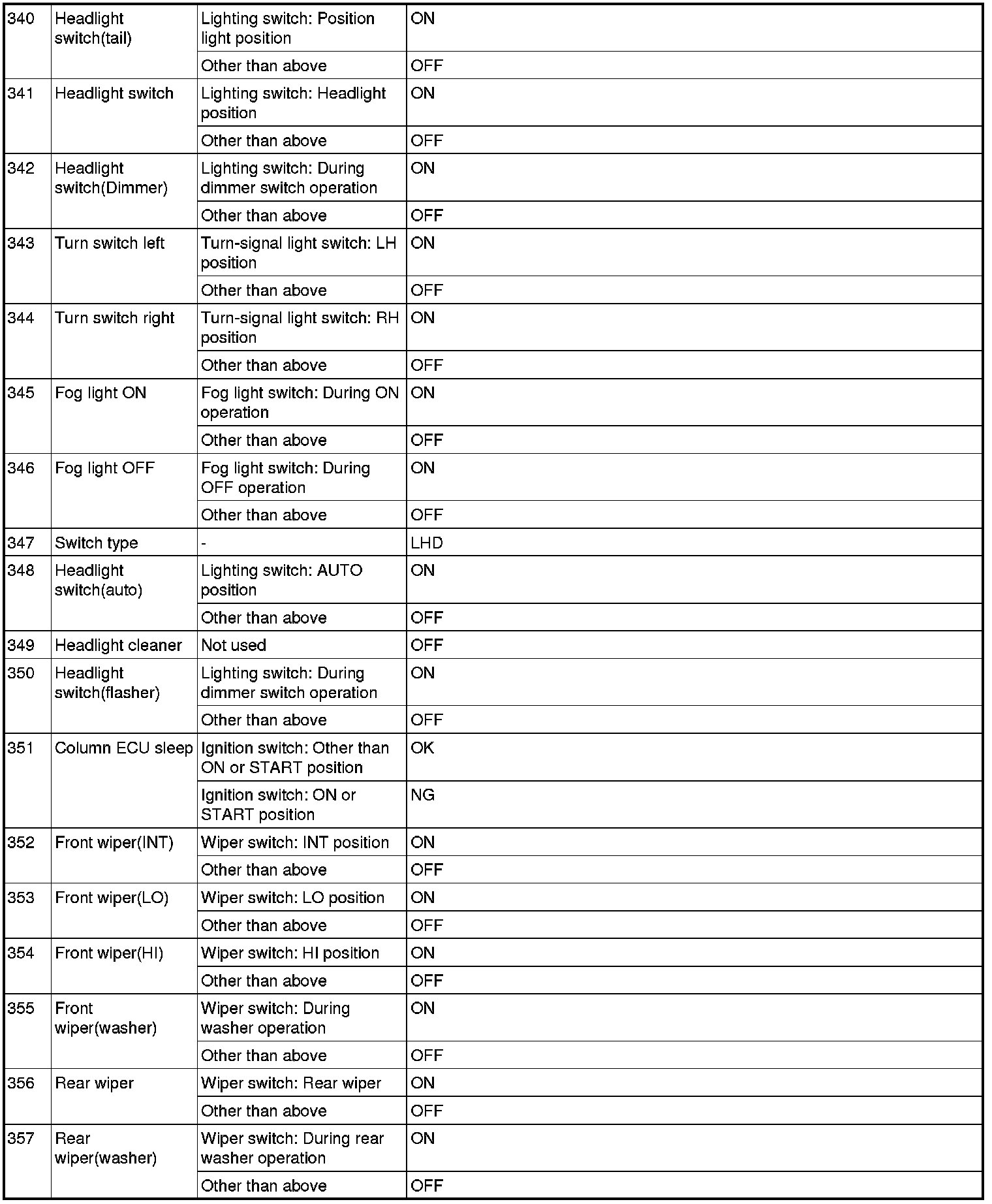

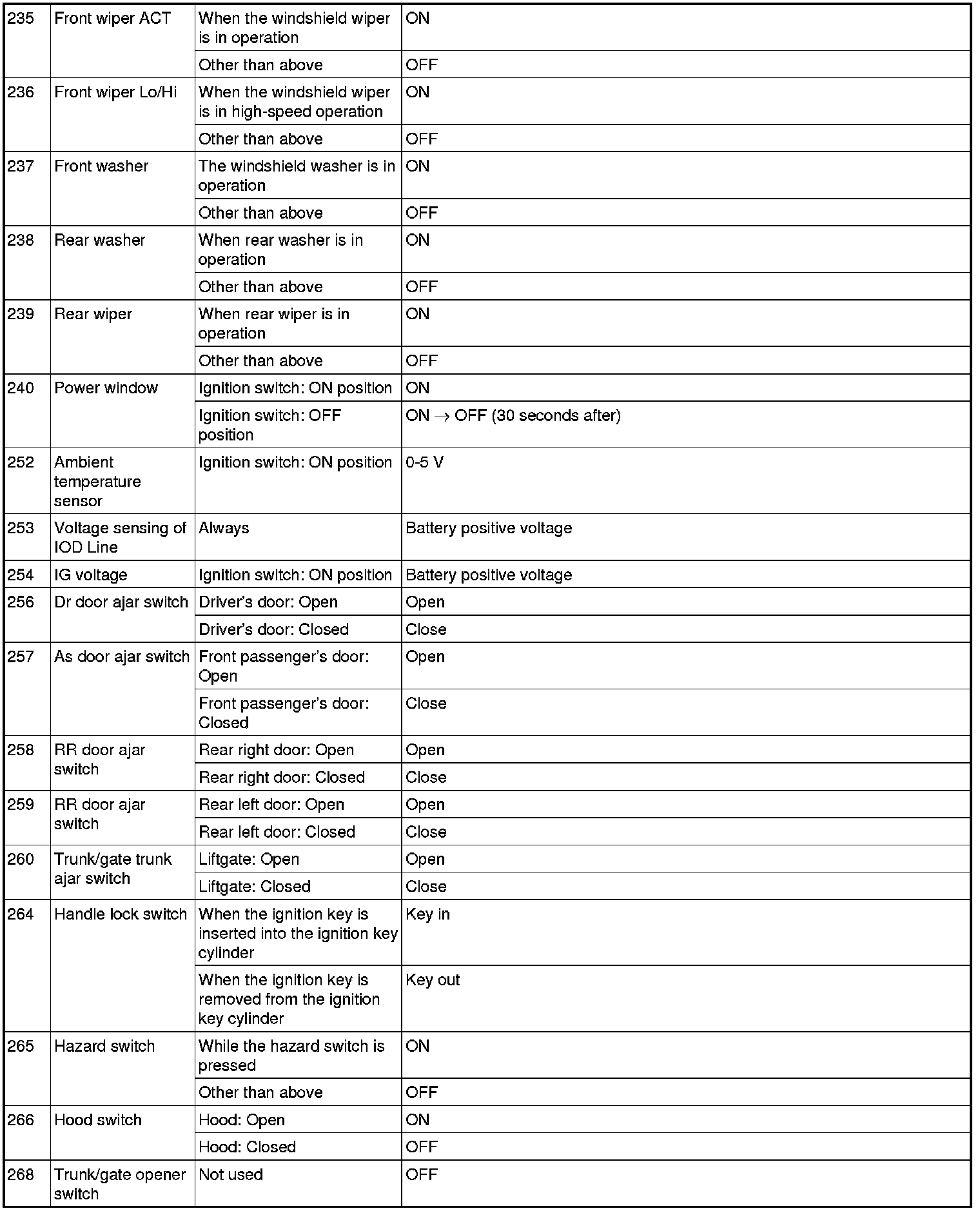

DATA LIST REFERENCE TABLE

NOTE:
For some information result read out by the ECU, the specific items may not be displayed.
