Transmission Position Sensor/Switch: Adjustments

TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT

1. Set the selector lever to the "N" position.





2. Loosen the control cable to the manual control lever adjusting nut to free the cable and lever.
3. Set the manual control lever to the neutral position.

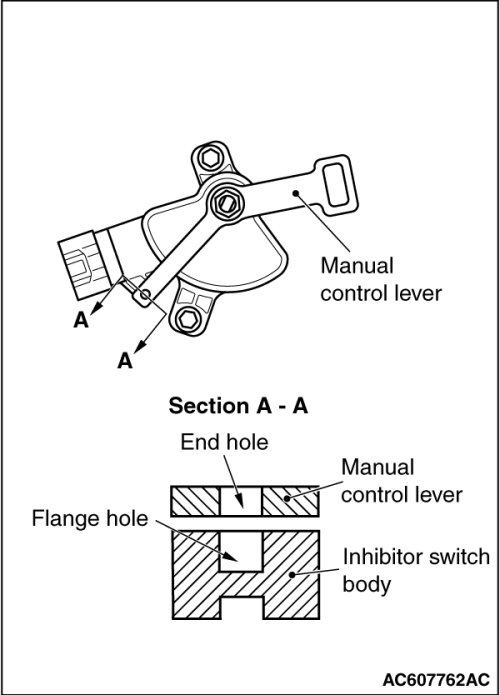

4. Align the hole at the end of the manual control lever and the hole in the Transmission range switch body flange (section A - A).
NOTE:
Insert a dia.5 bar into the aligned holes in the Transmission range switch body flange and on the tip of the manual control lever to position the Transmission range switch body.

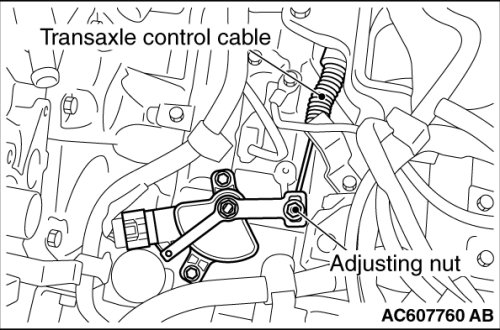

5. Tighten the transaxle control cable using the adjusting nut with the specified torque.
Tightening torque: 9.5± 3.5Nm (84± 30 in-lb)
6. Check that the selector lever is in the N position.
7. Check that each position of the manual control lever matches each position of the selector lever using M.U.T.-III MB991958 (M.U.T.-III sub assembly).
