Removal And Installation: Notes

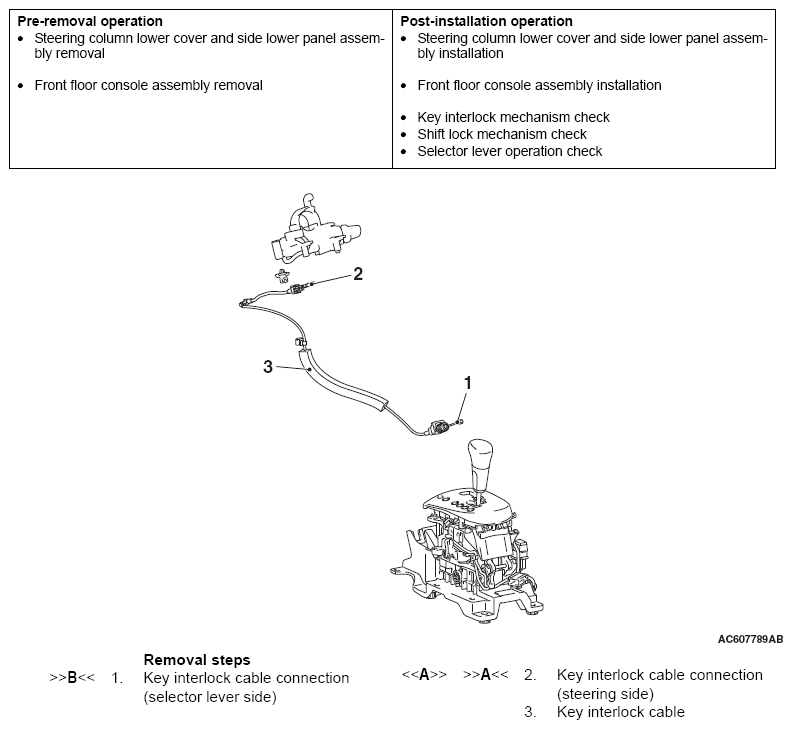

Fig 1: Identifying Key Interlock Cable Connection And Key Interlock Cable
G07035385Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
