DTC P0826: Malfunction of Shift Switch Assembly: Notes

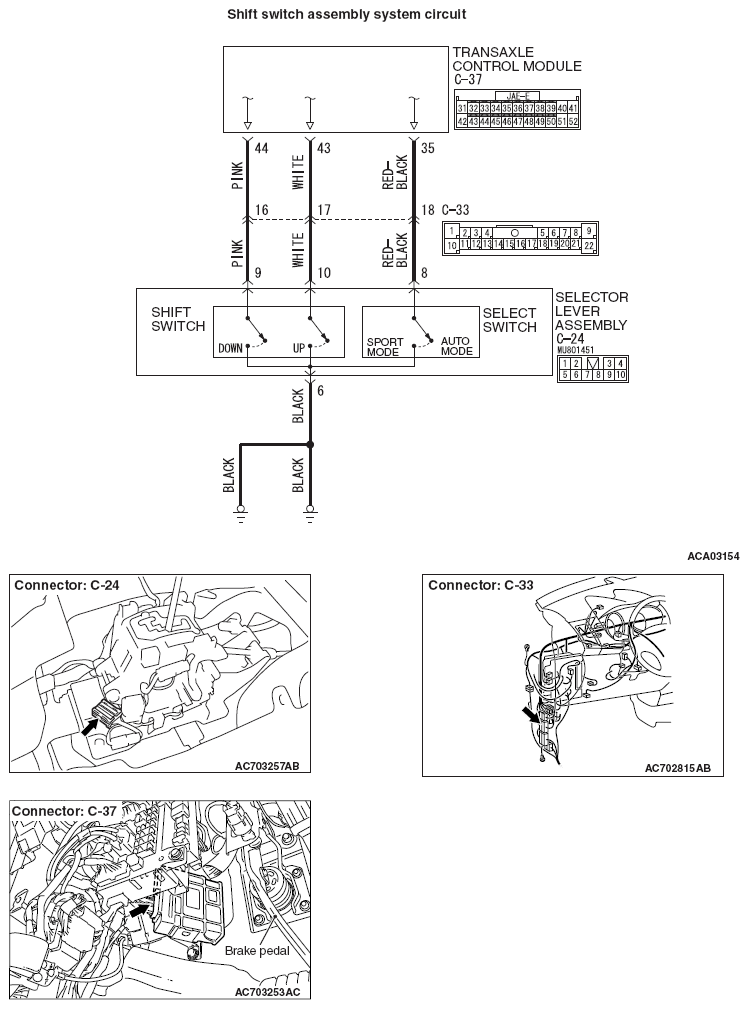

Fig 1: Shift Switch Assembly System Circuit
G07035317Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
