Direct Control (Torque Converter Clutch Control)

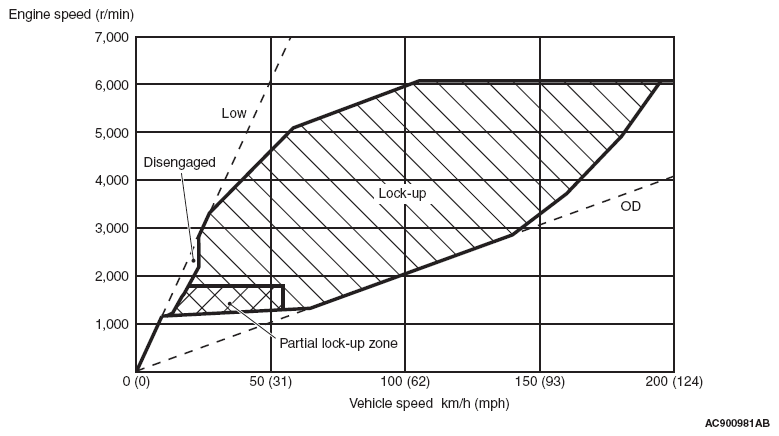

Fig 1: Direct Control Speed Pattern Diagram (Torque Converter Clutch Control)
G06481793Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

By carefully controlling the direct operating pressure depending on the driving conditions, the shock-free direct operation from low speed has been achieved.
