Removal And Installation: Notes

CAUTION: The parts indicated by the * are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.

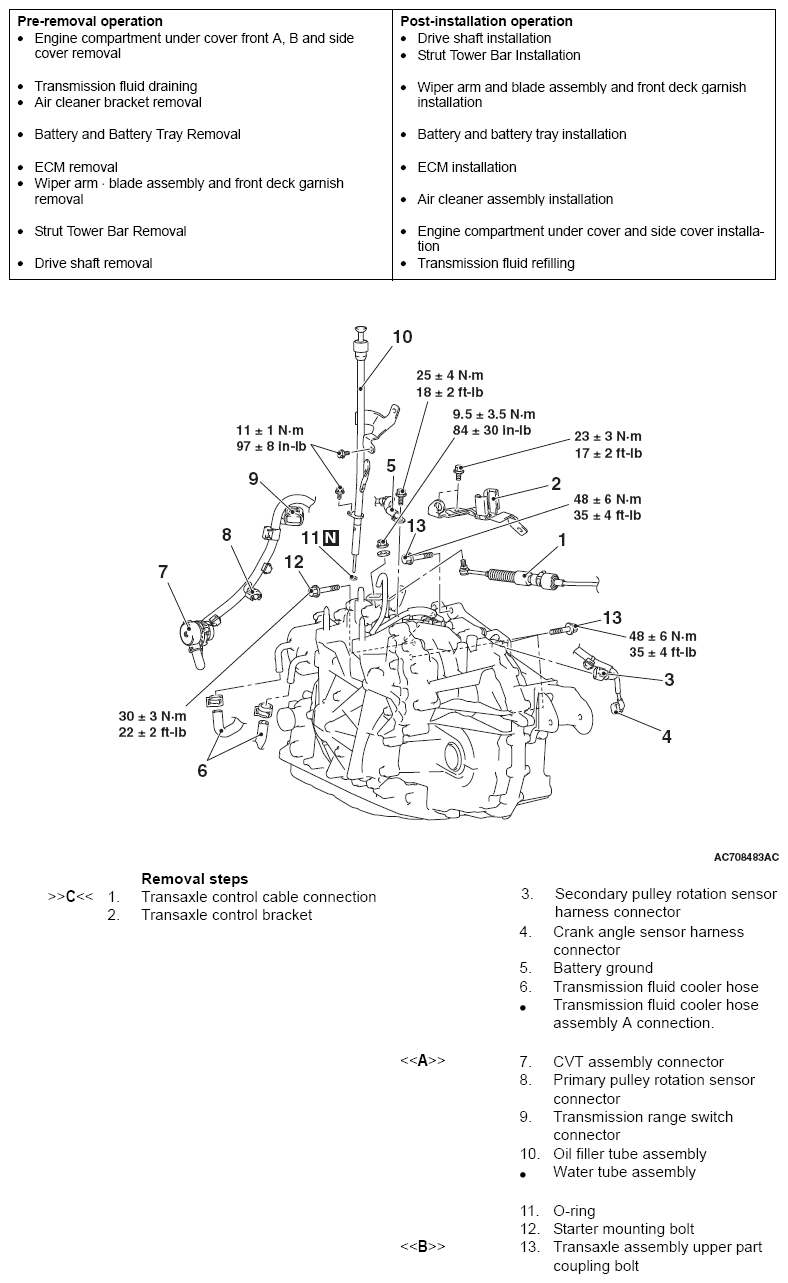

Fig 1: Exploded View Of Transaxle Assembly With Torque Specifications
G07035387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
