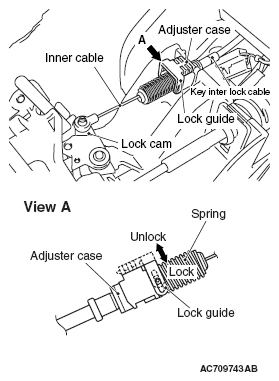

>> A << Key Interlock Cable Installation
CAUTION:
Leave the ignition switch in the LOCK (OFF) position until the key interlock cable installation is completed.
- Move the selector lever to the P position and turn the ignition switch to the LOCK (OFF) position.
- Install the tip of the key interlock cable to the lock cam of the selector lever assembly, taking care not to twist the inner cable.
- Install the adjuster case with its lock guide pulled up (unlocked).
- Securely push down the lock guide to lock it.NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.
