Removal And Installation: Notes

CAUTION: Before removing the clock spring connector, refer to SERVICE PRECAUTIONS .

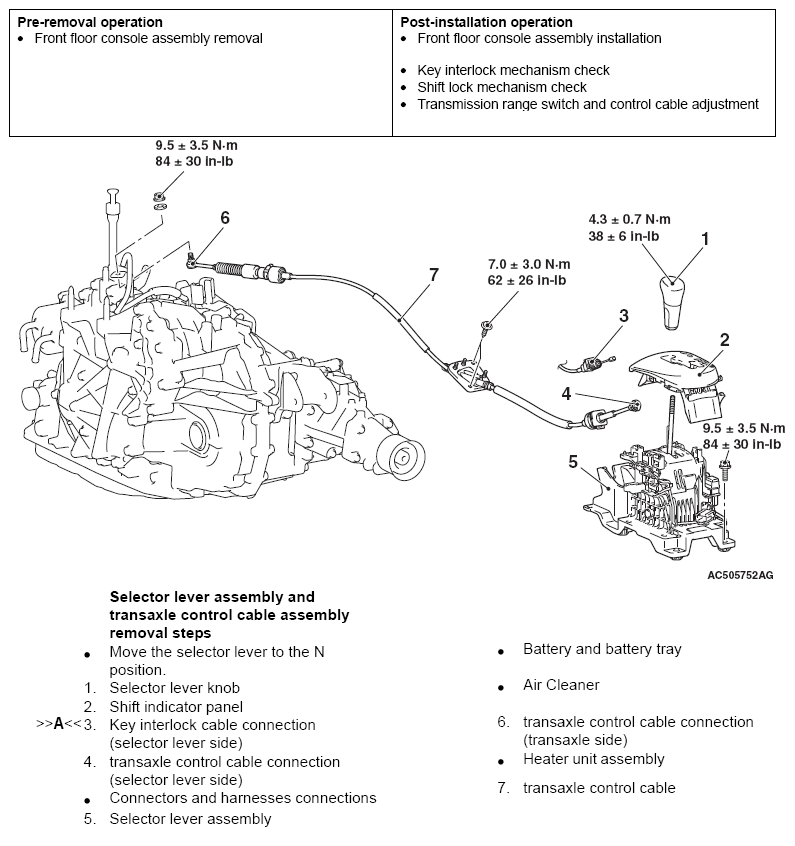

Fig 1: Exploded View Of Transaxle Control With Torque Specifications
G07035382Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
