Removal And Installation: Notes

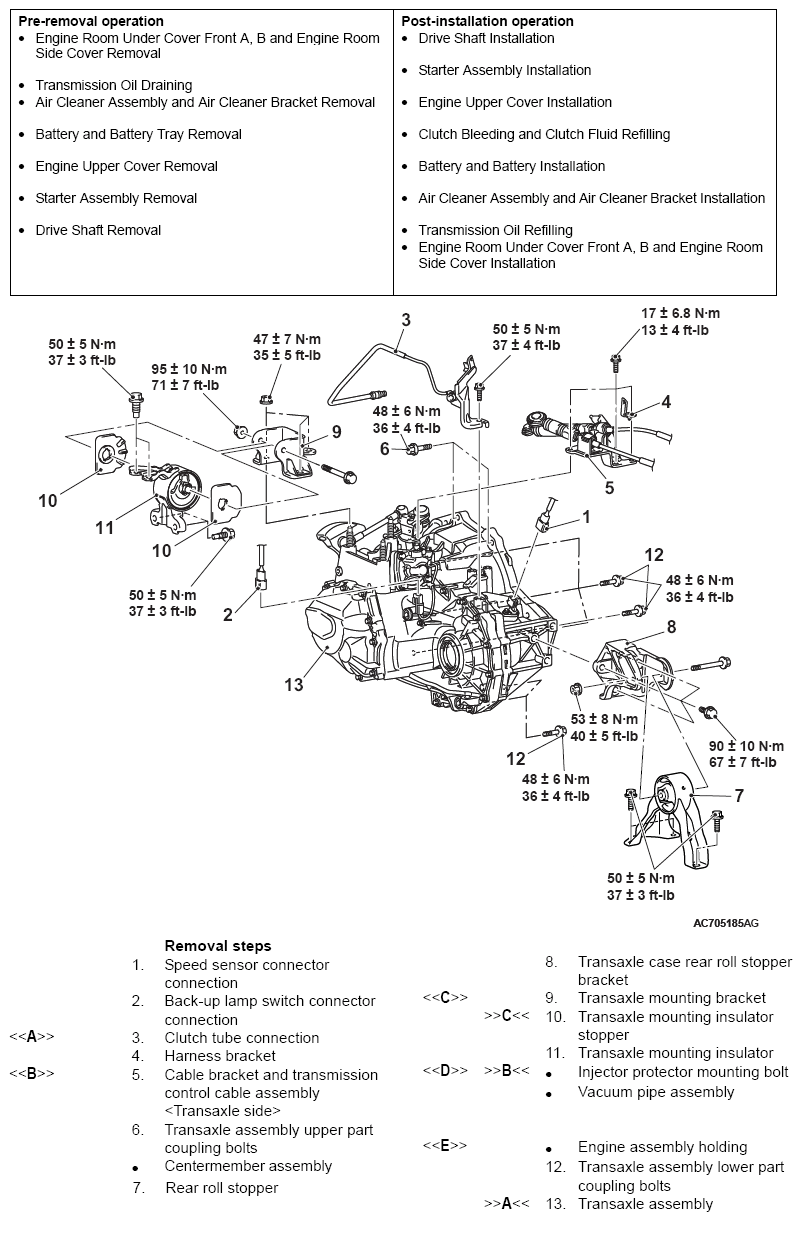

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991895: Engine Hanger
• MB991928: Engine Hanger
• MB991527: Hanger
• MB991930: Joint (90)
• MB991932: Foot (standard)
• MB992201: Engine hanger plate
• MB992277: Clip remover plate
