INSPECTION PROCEDURE 2: Remote controlled radio switch: When remote controlled radio power switch is turned "ON," no power is available. But radio and CD player with CD changer power switch is available. <Vehicles with audio amplifier>: Notes

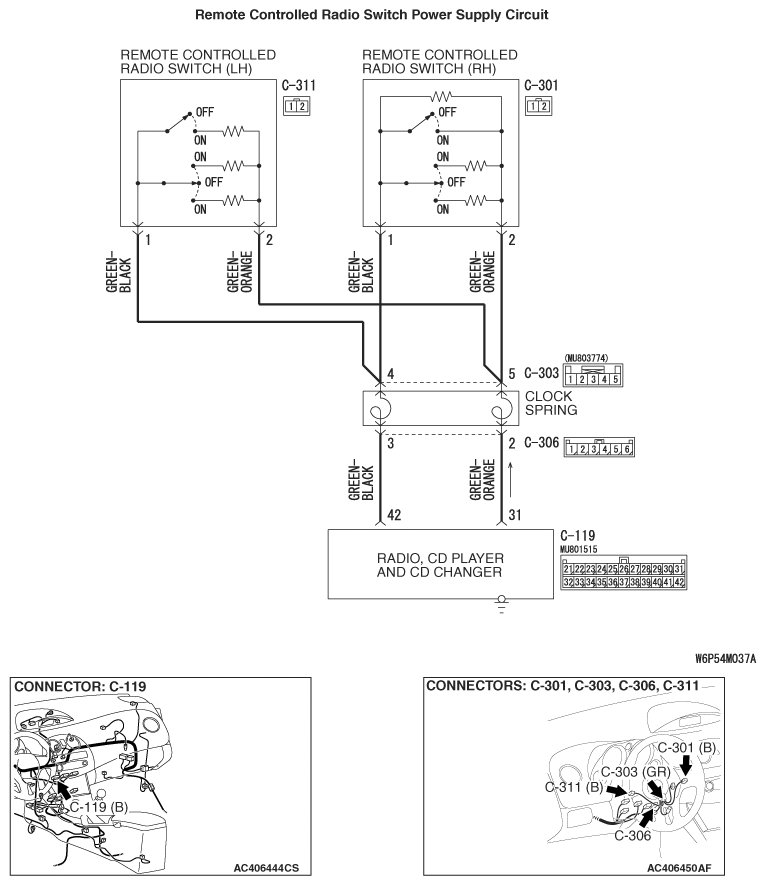

Fig 1: Remote Controlled Radio Switch Circuit Diagram
G06690134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
