>>B<< Cylinder Sub-Assembly Assembly

Apply the supplied grease to body surfaces of the cylinder opposite of the tumblers, in the keyway of the cylinder plug head and actuator pocket, and the inside diameter of the case.

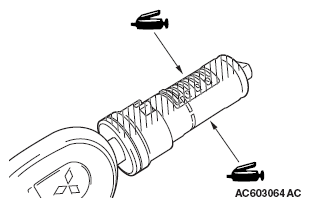

Fig 1: Identifying Tumbler Grease Applying Area
G06700422Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
