Disassembly And Assembly <Front>: Notes

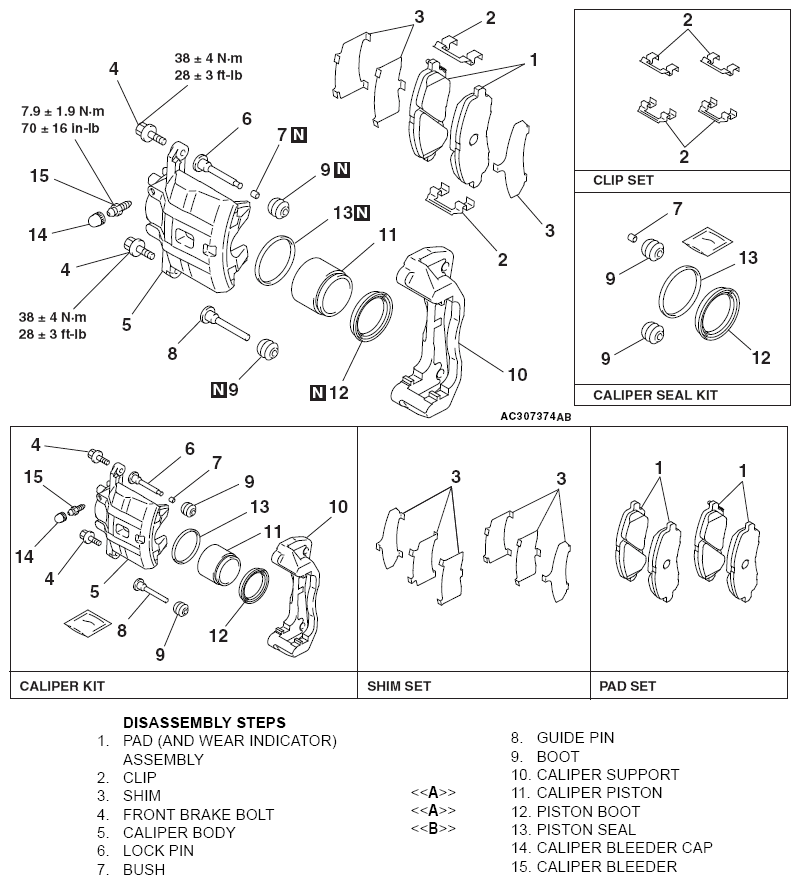

Fig 1: Exploded View Of Disc Brake Assembly With Torque Specifications
G06689629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
