Removal And Installation: Notes

CAUTION:
  • Do not strike the ABS rotors installed to the BJ or EBJ outer race of driveshaft against other parts when removing or installing the driveshaft. Otherwise the ABS rotors will be damaged.
  • Be careful not to strike the pole piece at the tip of the front wheel speed sensor with tools during servicing work.

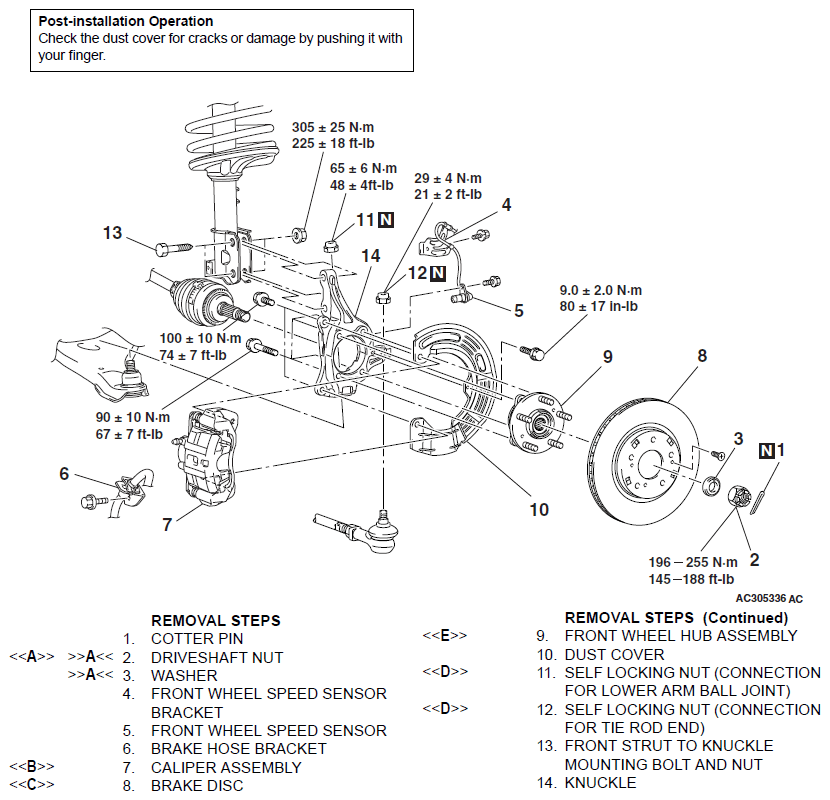

    Fig 1: Removal/Installation Of Front Axle Hub Assembly Components With Torque Specifications
    G06692102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
