Removal And Installation <3.8L Engine>: Notes

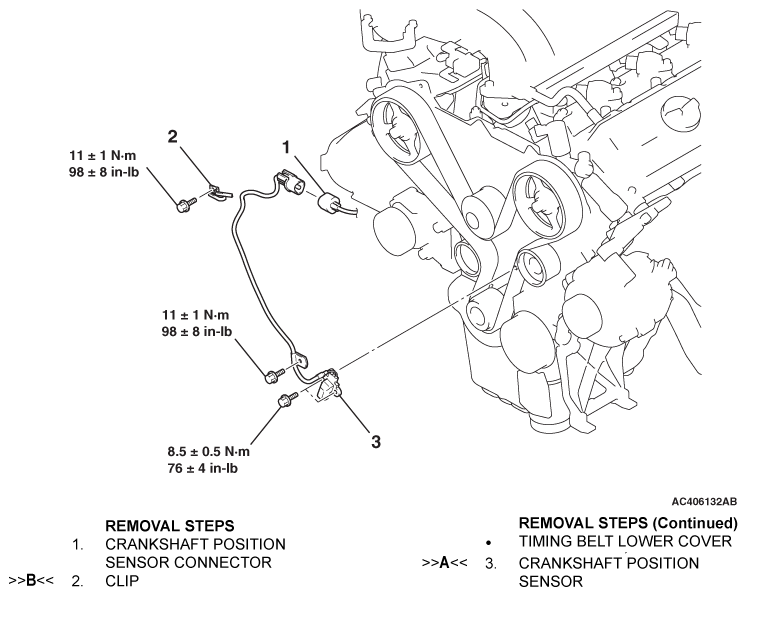

Fig 1: Removal/Installation Of Crankshaft Position Sensor With Torque Specifications (3.8L Engine)
G06692027Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
